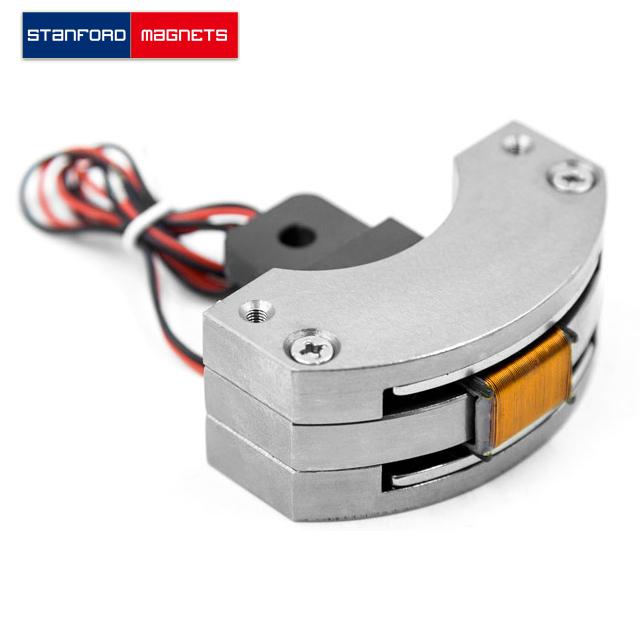

Arc Voice Coil Actuator Introduction

Arc Voice Coil Actuator (AVCA) is a type of linear actuator that uses the principle of a voice coil motor (VCM) but is designed to operate in an arc or rotational motion rather than linear motion.

Unlike traditional linear voice coil actuators that produce straight-line motion, an Arc Voice Coil Actuator is designed to move along a curved path or rotate around a pivot point, creating angular displacement.

Arc Voice Coil Actuator Specification

-	Unit	Value
Rated performance
Peak Torque	N·m	0.22
Continuous Torque	N·m	0.12
Torque Constant	N·m/A	0.16
Back EMF	Vrms/(m/s)	0.16
Total Swing Angle	°	32.0
Coil Gap	mm	0.5
Electrical specifications
Peak Voltage	V	16.1
Peak Current	A	1.4
Motor Constant	N/√W	0.05
Electrical Time Constant	ms	0.17
Peak Power	W	22.1
Phase Resistance	Ω	11.7
Phase Inductance	mh	2
Max. Winding Temperature	℃	150
Mechanical characteristics
Mover Weight	g	22
Mover Inertia	g·cm2	130
Magnet Weight	g	220
Motor Weight	g	242
Dimensions	mm	602651.5

Arc Voice Coil Actuator Applications

Optical Systems: Adjusting mirrors or lenses in response to changes in focus or alignment.
Robotic Joints: Providing precise control over the rotation of joints in robotic arms or other mechanisms.
Gimbal Systems: Stabilizing or orienting devices in aerospace or other precision fields.
