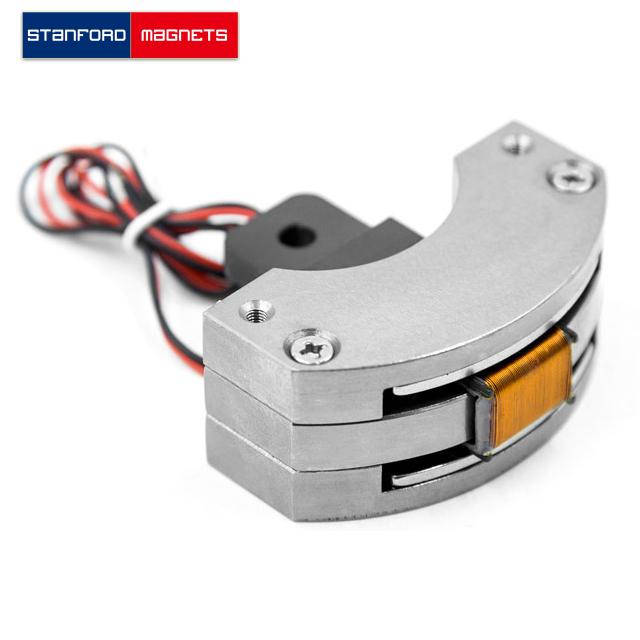

Arc Voice Coil Actuator 0057-032-000

SMON6003 Arc Voice Coil Actuator 0057-032-000

Product ID: SMON6003

{{el.prop}}: {{el.options}}

DESCRIPTION

Arc Voice Coil Actuator Introduction

Arc Voice Coil Actuator (AVCA) is a type of linear actuator that uses the principle of a voice coil motor (VCM) but is designed to operate in an arc or rotational motion rather than linear motion.

Unlike traditional linear voice coil actuators that produce straight-line motion, an Arc Voice Coil Actuator is designed to move along a curved path or rotate around a pivot point, creating angular displacement.

Arc Voice Coil Actuator Specification

-	Unit	Value
Rated performance
Peak Torque	N·m	0.57
Continuous Torque	N·m	0.23
Torque Constant	N·m/A	0.34
Back EMF	Vrms/(m/s)	0.34
Total Swing Angle	°	32.0
Coil Gap	mm	0.50
Electrical specifications
Peak Voltage	V	23.5
Peak Current	A	1.7
Motor Constant	N/√W	0.09
Electrical Time Constant	ms	1.19
Peak Power	W	39.3
Phase Resistance	Ω	14.0
Phase Inductance	mh	2.6
Max. Winding Temperature	℃	155
Mechanical characteristics
Mover Weight	g	30
Mover Inertia	g·cm2	160
Magnet Weight	g	340
Motor Weight	g	370
Dimensions	mm	603256.5

Arc Voice Coil Actuator Applications

Optical Systems: Adjusting mirrors or lenses in response to changes in focus or alignment.
Robotic Joints: Providing precise control over the rotation of joints in robotic arms or other mechanisms.
Gimbal Systems: Stabilizing or orienting devices in aerospace or other precision fields.
