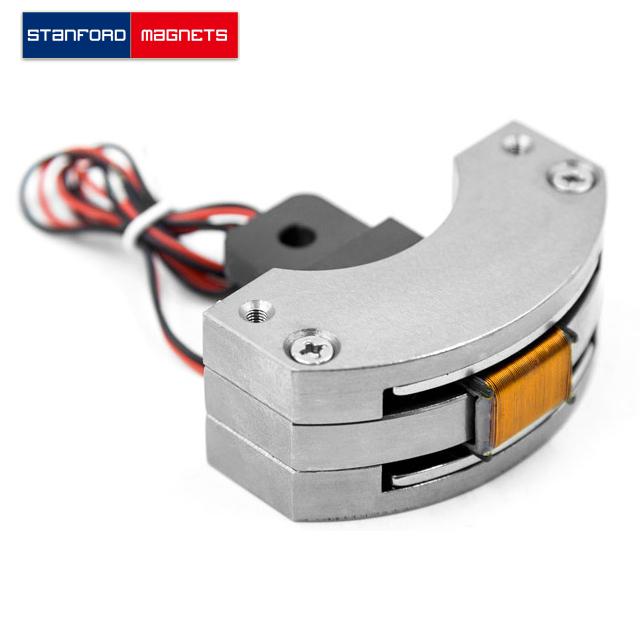

Arc Voice Coil Actuator 0095-024-000

SMON6010 Arc Voice Coil Actuator 0095-024-000

Product ID: SMON6010

{{el.prop}}: {{el.options}}

DESCRIPTION

Arc Voice Coil Actuator Introduction

Arc Voice Coil Actuator (AVCA) is a type of linear actuator that uses the principle of a voice coil motor (VCM) but is designed to operate in an arc or rotational motion rather than linear motion.

Unlike traditional linear voice coil actuators that produce straight-line motion, an Arc Voice Coil Actuator is designed to move along a curved path or rotate around a pivot point, creating angular displacement.

Arc Voice Coil Actuator Specification

-	Unit	Value
Rated performance
Peak Torque	N·m	0.14
Continuous Torque	N·m	0.06
Torque Constant	N·m/A	0.05
Back EMF	Vrms/(m/s)	0.05
Total Swing Angle	°	24
Coil Gap	mm	1.0
Electrical specifications
Peak Voltage	V	14.6
Peak Current	A	2.9
Motor Constant	N/√W	0.2
Electrical Time Constant	ms	0.8
Peak Power	W	42.5
Phase Resistance	Ω	5.0
Phase Inductance	mh	4.0
Max. Winding Temperature	℃	120
Mechanical characteristics
Mover Weight	g	68
Mover Inertia	g·cm²	90
Magnet Weight	g	41
Motor Weight	g	109
Dimensions	mm	64*13

Arc Voice Coil Actuator Applications

Optical Systems: Adjusting mirrors or lenses in response to changes in focus or alignment.
Robotic Joints: Providing precise control over the rotation of joints in robotic arms or other mechanisms.
Gimbal Systems: Stabilizing or orienting devices in aerospace or other precision fields.
