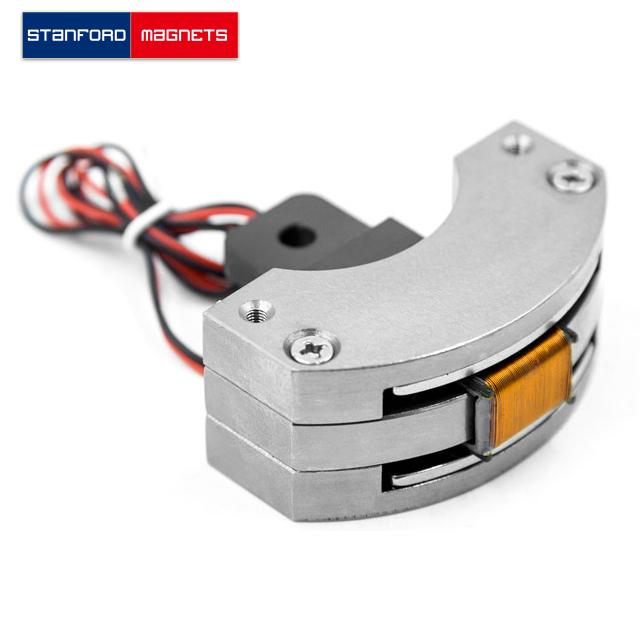

Arc Voice Coil Actuator 0150-010-000

SMON6007 Arc Voice Coil Actuator 0150-010-000

Product ID: SMON6007

{{el.prop}}: {{el.options}}

DESCRIPTION

Arc Voice Coil Actuator Introduction

Arc Voice Coil Actuator (AVCA) is a type of linear actuator that uses the principle of a voice coil motor (VCM) but is designed to operate in an arc or rotational motion rather than linear motion.

Unlike traditional linear voice coil actuators that produce straight-line motion, an Arc Voice Coil Actuator is designed to move along a curved path or rotate around a pivot point, creating angular displacement.

Arc Voice Coil Actuator Specification

-	Unit	Value
Rated performance
Peak Torque	N·m	1.5
Continuous Torque	N·m	0.8
Torque Constant	N·m/A	1.25
Back EMF	Vrms/(m/s)	1.25
Total Swing Angle	°	10.0
Coil Gap	mm	1.0
Electrical specifications
Peak Voltage	V	6.0
Peak Current	A	1.2
Motor Constant	N/√W	0.6
Electrical Time Constant	ms	0.44
Peak Power	W	7.2
Phase Resistance	Ω	5.0
Phase Inductance	mh	2.2
Max. Winding Temperature	℃	120
Mechanical characteristics
Mover Weight	g	106
Mover Inertia	g·cm²	8000
Magnet Weight	g	1400
Motor Weight	g	1506
Dimensions	mm	90.73690.6

Arc Voice Coil Actuator Applications

Optical Systems: Adjusting mirrors or lenses in response to changes in focus or alignment.
Robotic Joints: Providing precise control over the rotation of joints in robotic arms or other mechanisms.
Gimbal Systems: Stabilizing or orienting devices in aerospace or other precision fields.
