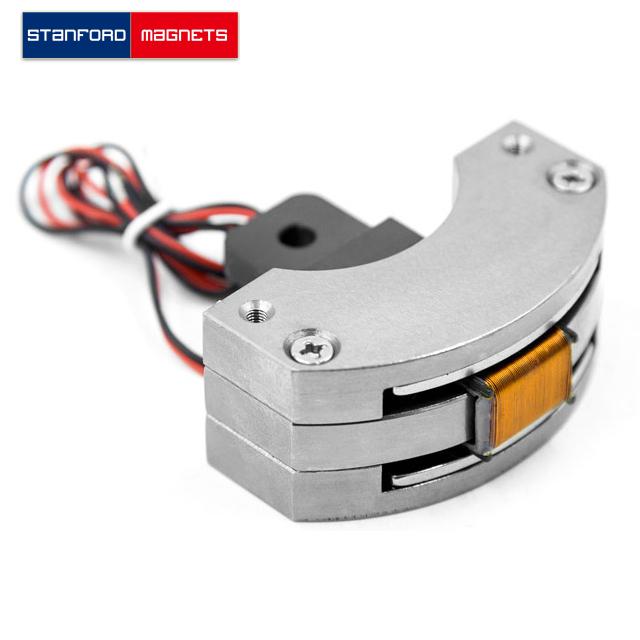

Arc Voice Coil Actuator 0150-030-000

SMON6008 Arc Voice Coil Actuator 0150-030-000

Product ID: SMON6008

{{el.prop}}: {{el.options}}

DESCRIPTION

Arc Voice Coil Actuator Introduction

Arc Voice Coil Actuator (AVCA) is a type of linear actuator that uses the principle of a voice coil motor (VCM) but is designed to operate in an arc or rotational motion rather than linear motion.

Unlike traditional linear voice coil actuators that produce straight-line motion, an Arc Voice Coil Actuator is designed to move along a curved path or rotate around a pivot point, creating angular displacement.

Arc Voice Coil Actuator Specification

-	Unit	Value
Rated performance
Peak Torque	N·m	1.5
Continuous Torque	N·m	0.7
Torque Constant	N·m/A	0.4
Back EMF	Vrms/(m/s)	0.4
Total Swing Angle	°	30.0
Coil Gap	mm	1.0
Electrical specifications
Peak Voltage	V	14.5
Peak Current	A	3.9
Motor Constant	N/√W	0.2
Electrical Time Constant	ms	0.3
Peak Power	W	57.6
Phase Resistance	Ω	3.7
Phase Inductance	mh	1.1
Max. Winding Temperature	℃	155
Mechanical characteristics
Mover Weight	g	80
Mover Inertia	g·cm²	3300
Magnet Weight	g	880
Motor Weight	g	960
Dimensions	mm	804855.5

Arc Voice Coil Actuator Applications

Optical Systems: Adjusting mirrors or lenses in response to changes in focus or alignment.
Robotic Joints: Providing precise control over the rotation of joints in robotic arms or other mechanisms.
Gimbal Systems: Stabilizing or orienting devices in aerospace or other precision fields.
