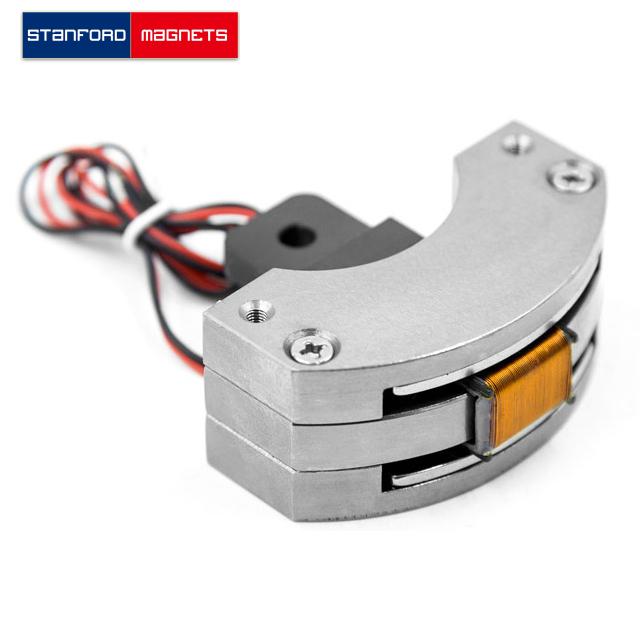

Arc Voice Coil Actuator 0180-060-000

SMON6009 Arc Voice Coil Actuator 0180-060-000

Product ID: SMON6009

{{el.prop}}: {{el.options}}

DESCRIPTION

Arc Voice Coil Actuator Introduction

Arc Voice Coil Actuator (AVCA) is a type of linear actuator that uses the principle of a voice coil motor (VCM) but is designed to operate in an arc or rotational motion rather than linear motion.

Unlike traditional linear voice coil actuators that produce straight-line motion, an Arc Voice Coil Actuator is designed to move along a curved path or rotate around a pivot point, creating angular displacement.

Arc Voice Coil Actuator Specification

-	Unit	Value
Rated performance
Peak Torque	N·m	1.8
Continuous Torque	N·m	1.05
Torque Constant	N·m/A	0.23
Back EMF	Vrms/(m/s)	0.23
Total Swing Angle	°	60
Coil Gap	mm	1.2
Electrical specifications
Peak Voltage	V	14.1
Peak Current	A	7.8
Motor Constant	N/√W	0.17
Electrical Time Constant	ms	0.27
Peak Power	W	110.2
Phase Resistance	Ω	1.8
Phase Inductance	mh	0.48
Max. Winding Temperature	℃	155
Mechanical characteristics
Mover Weight	g	300
Mover Inertia	g·cm²	4500
Magnet Weight	g	3900
Motor Weight	g	4200
Dimensions	mm	169.6169.663

Arc Voice Coil Actuator Applications

Optical Systems: Adjusting mirrors or lenses in response to changes in focus or alignment.
Robotic Joints: Providing precise control over the rotation of joints in robotic arms or other mechanisms.
Gimbal Systems: Stabilizing or orienting devices in aerospace or other precision fields.
