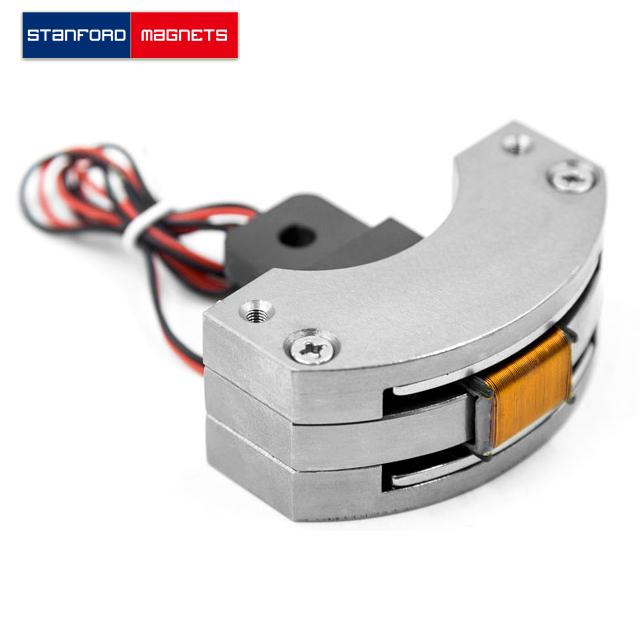

Arc Voice Coil Actuator 0340-060-000

SMON6011 Arc Voice Coil Actuator 0340-060-000

Product ID: SMON6011

{{el.prop}}: {{el.options}}

DESCRIPTION

Arc Voice Coil Actuator Introduction

Arc Voice Coil Actuator (AVCA) is a type of linear actuator that uses the principle of a voice coil motor (VCM) but is designed to operate in an arc or rotational motion rather than linear motion.

Unlike traditional linear voice coil actuators that produce straight-line motion, an Arc Voice Coil Actuator is designed to move along a curved path or rotate around a pivot point, creating angular displacement.

Arc Voice Coil Actuator Specification

-	Unit	Value
Rated performance
Peak Torque	N·m	3.4
Continuous Torque	N·m	1.62
Torque Constant	N·m/A	0.4
Back EMF	Vrms/(m/s)	0.4
Total Swing Angle	°	60
Coil Gap	mm	1.2
Electrical specifications
Peak Voltage	V	26.3
Peak Current	A	8.5
Motor Constant	N/√W	0.23
Electrical Time Constant	ms	0.42
Peak Power	W	224
Phase Resistance	Ω	3.1
Phase Inductance	mh	1.3
Max. Winding Temperature	℃	155
Mechanical characteristics
Mover Weight	g	350
Mover Inertia	g·cm²	5800
Magnet Weight	g	3900
Motor Weight	g	4250
Dimensions	mm	169.6169.663

Arc Voice Coil Actuator Applications

Optical Systems: Adjusting mirrors or lenses in response to changes in focus or alignment.
Robotic Joints: Providing precise control over the rotation of joints in robotic arms or other mechanisms.
Gimbal Systems: Stabilizing or orienting devices in aerospace or other precision fields.
