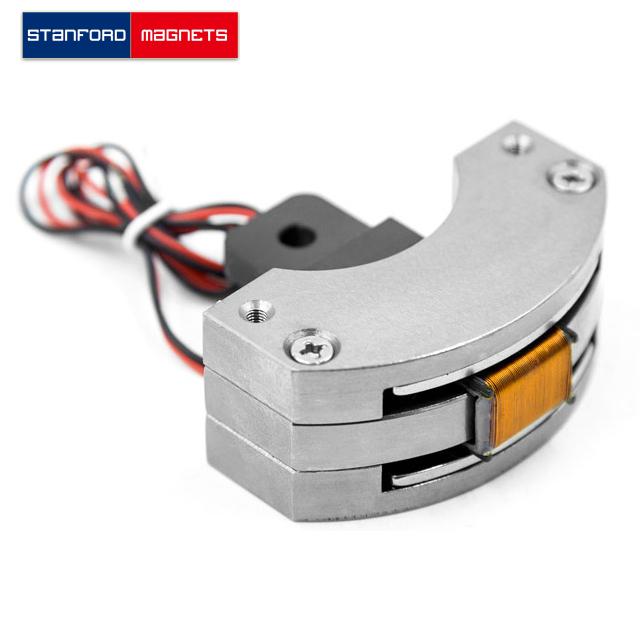

Arc Voice Coil Actuator 0710-053-000

SMON6012 Arc Voice Coil Actuator 0710-053-000

Product ID: SMON6012

{{el.prop}}: {{el.options}}

DESCRIPTION

Arc Voice Coil Actuator Introduction

Arc Voice Coil Actuator (AVCA) is a type of linear actuator that uses the principle of a voice coil motor (VCM) but is designed to operate in an arc or rotational motion rather than linear motion.

Unlike traditional linear voice coil actuators that produce straight-line motion, an Arc Voice Coil Actuator is designed to move along a curved path or rotate around a pivot point, creating angular displacement.

Arc Voice Coil Actuator Specification

-	Unit	Value
Rated performance
Peak Torque	N·m	7.1
Continuous Torque	N·m	2.6
Torque Constant	N·m/A	1.0
Back EMF	Vrms/(m/s)	1.0
Total Swing Angle	°	53
Coil Gap	mm	1.0
Electrical specifications
Peak Voltage	V	28.4
Peak Current	A	7.1
Motor Constant	N/√W	0.5
Electrical Time Constant	ms	1.1
Peak Power	W	201.6
Phase Resistance	Ω	4.0
Phase Inductance	mh	4.4
Max. Winding Temperature	℃	155
Mechanical characteristics
Mover Weight	g	330
Mover Inertia	g·cm²	36500
Magnet Weight	g	3700
Motor Weight	g	4030
Dimensions	mm	20014657

Arc Voice Coil Actuator Applications

Optical Systems: Adjusting mirrors or lenses in response to changes in focus or alignment.
Robotic Joints: Providing precise control over the rotation of joints in robotic arms or other mechanisms.
Gimbal Systems: Stabilizing or orienting devices in aerospace or other precision fields.
