Arc Voice Coil Actuator 1580-014-000

SMON6013 Arc Voice Coil Actuator 1580-014-000

Product ID: SMON6013

{{el.prop}}: {{el.options}}

DESCRIPTION

Arc Voice Coil Actuator Introduction

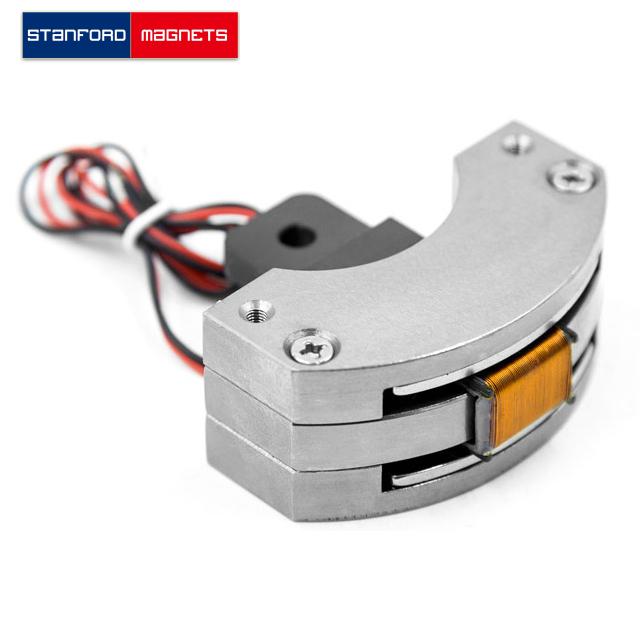

Arc Voice Coil Actuator (AVCA) is a type of linear actuator that uses the principle of a voice coil motor (VCM) but is designed to operate in an arc or rotational motion rather than linear motion.

Unlike traditional linear voice coil actuators that produce straight-line motion, an Arc Voice Coil Actuator is designed to move along a curved path or rotate around a pivot point, creating angular displacement.

Arc Voice Coil Actuator Specification

-	Unit	Value
Rated performance
Peak Torque	N·m	15.8
Continuous Torque	N·m	5.9
Torque Constant	N·m/A	27.1
Back EMF	Vrms/(m/s)	6.6
Total Swing Angle	°	14
Coil Gap	mm	1.0
Electrical specifications
Peak Voltage	V	27.1
Peak Current	A	6.6
Motor Constant	N/√W	1.18
Electrical Time Constant	ms	1.1
Peak Power	W	177.7
Phase Resistance	Ω	4.0
Phase Inductance	mh	4.4
Max. Winding Temperature	℃	155
Mechanical characteristics
Mover Weight	g	320
Mover Inertia	g·cm²	51200
Magnet Weight	g	3800
Motor Weight	g	41200
Dimensions	mm	20016787.3

Arc Voice Coil Actuator Applications

Optical Systems: Adjusting mirrors or lenses in response to changes in focus or alignment.
Robotic Joints: Providing precise control over the rotation of joints in robotic arms or other mechanisms.
Gimbal Systems: Stabilizing or orienting devices in aerospace or other precision fields.
