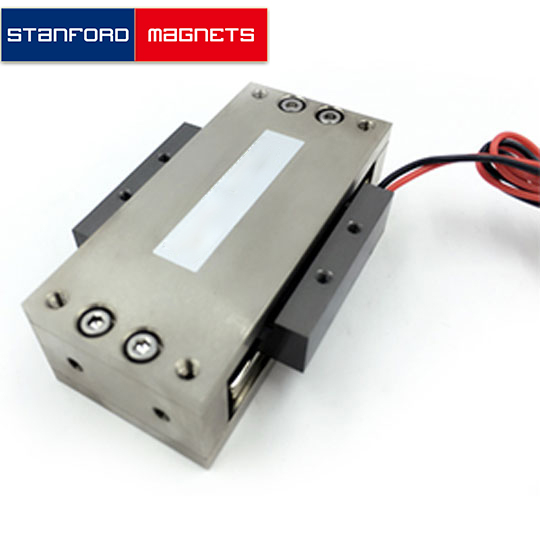

Flat Voice Coil Actuator

SMON3239 Flat Voice Coil Actuator

Product ID: SMON3239

{{el.prop}}: {{el.options}}

DESCRIPTION

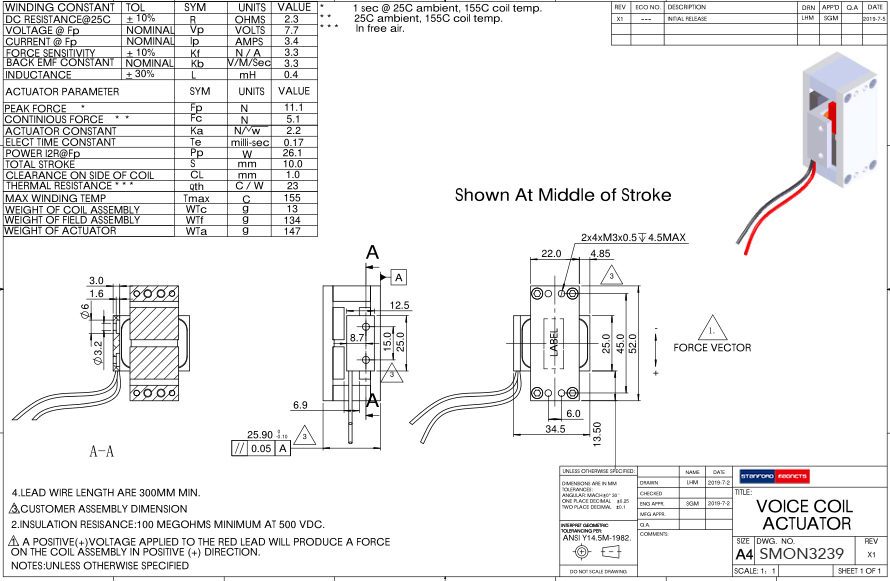

TECHNICAL DATA SHEET

Flat Voice Coil Actuator Introduction

Flat Voice Coil Actuator is a type of direct drive linear motor that operates on the principle of Lorentz force, which is the force exerted by a magnetic field on a current-carrying conductor. Unlike traditional cylindrical voice coil actuators, FVCAs have a flat or planar design, which can offer unique advantages in terms of form factor and application. This design allows for a compact footprint, making it suitable for applications where space is limited or where a flat motion profile is required. Compared with the rectangular Voice Coil Motor, Flat Voice Coil Actuator has a relatively shorter stroke in the same volume, but it has a lower height, a thrust of 500N, and a stroke of 25mm.

Flat Voice Coil Actuator Specification

Winding Constant	Tol	Sym	Unit	Value
DC Resistance @ 25C	±10%	R	Ohms	2.3
Voltage @ Fp	Nominal	Vp	Volts	7.7
Current @ Fp	Nominal	Ip	Amps	3.4
Force Sensitivity	±10%	Kf	-	3.3
Back Emf Constant	Nominal	Kb	Vrms/(m/s)	3.3
Inductance	±30%	L	mH	0.4
Actuator Parameter		SYM	Units	Value
Peak Force		Fp	N	11.1
Continuous Force		Fc	N	5.1
Actuator Constant		Ka	N/√w	2.2
Elect Time Constant		Te	ms	0.17
Power I²R@Fp		Pp	W	26.1
Total Stroke		S	Mm	10.0
Clearance on side of coil		CL	Mm	1.0
Thermal Resistance		θ	C/W	23
Max. Winding Temp.		Tmax	℃	155
Weight of Coil Assembly		WTc	g	13
Weight of Field Assembly		WTf	g	134
Weight of Actuator		WTa	g	147

For more specifications of other models, please contact us.

Flat Voice Coil Actuator Applications

Precision Positioning: Used in semiconductor manufacturing equipment, optical systems, and scientific instruments where precise, controlled movement is crucial.
Medical Devices: Applied in imaging systems, patient positioning platforms, and robotic surgical devices, where accuracy and reliability are paramount.
Industrial Automation: Suitable for automated assembly, inspection systems, and robotics where space savings and precise control enhance operational efficiency.

Related products: Rectangular Voice Coil Motor

Arc Voice Coil Motor

Voice Coil Actuator in Ventilators

Linear Voice Coil Motor with Internal Bearing
