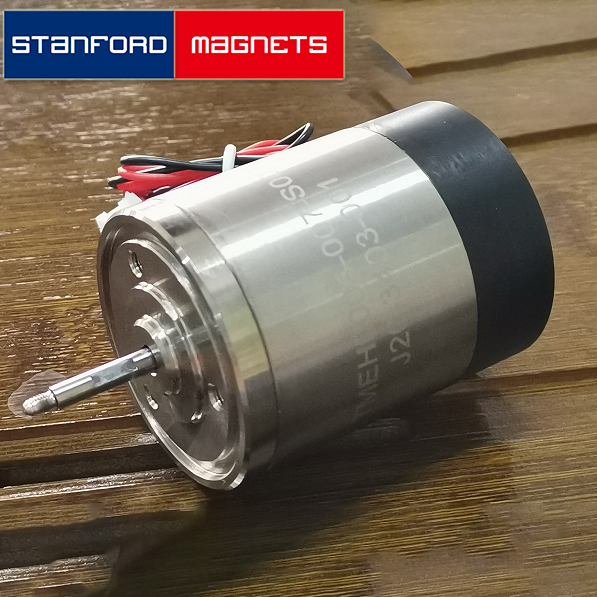

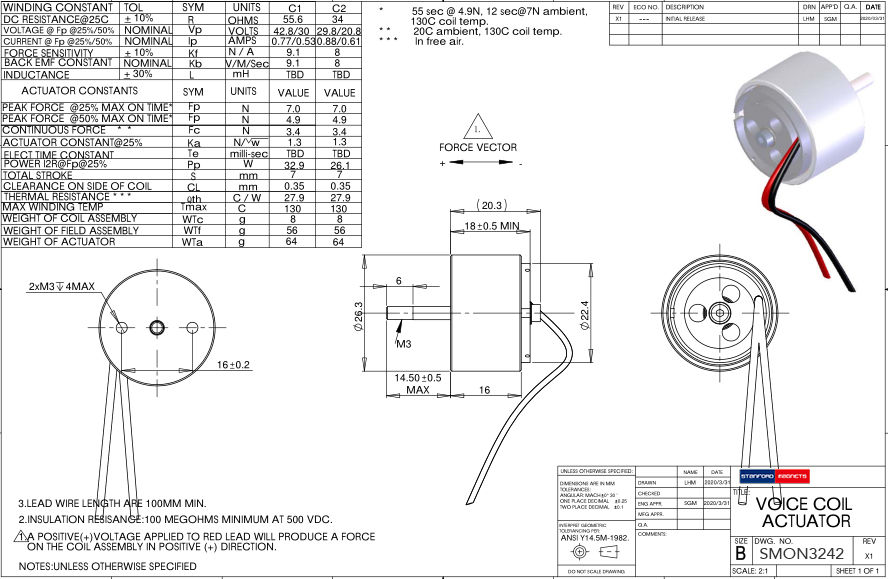

Voice Coil Actuator in Ventilators play a critical role in controlling the flow of air and gases precisely and reliably, directly impacting the ventilator ability to provide life-sustaining breathing support to patients. VCAs are electromechanical devices that convert electrical energy into linear motion. They are named for their operational similarity to the voice coils in loudspeakers.
|
Winding Constant |
Tol |
Sym |
Unit |
Value |
|
DC Resistance @ 25C |
±10% |
R |
Ohms |
4.6 |
|
Voltage @ Fp |
Nominal |
Vp |
Volts |
4.9 |
|
Current @ Fp |
Nominal |
Ip |
Amps |
1.1 |
|
Force Sensitivity |
±10% |
Kf |
N/A |
5.4 |
|
Back Emf Constant |
Nominal |
Kb |
V/M/Sec |
5.4 |
|
Inductance |
±30% |
L |
mH |
2.4 |
|
Actuator Parameter |
SYM |
Units |
Value |
|
|
Peak Force |
Fp |
N |
5.8 |
|
|
Continuous Stall Torque |
Fc |
N |
4.3 |
|
|
Actuator Constant |
Ka |
N/√w |
2.5 |
|
|
Elect Time Constant |
Te |
ms |
0.5 |
|
|
Power I2R@Fp |
Pp |
W |
5.3 |
|
|
Total Stroke |
S |
mm |
7.2 |
|
|
Clearance on side of coil |
CL |
Mm |
0.5 |
|
|
Thermal Resistance |
θ |
C/W |
30 |
|
|
Max. Winding Temp. |
Tmax |
℃ |
120 |
|
|
Weight of Coil Assembly |
WTc |
g |
16 |
|
|
Weight of Field Assembly |
WTf |
g |
214 |
|
|
Weight of Actuator |
WTa |
g |
230 |
|
For more specifications of other models, please contact us.
Voice Coil Actuator is widely used in Ventilators.
Related products: Flat Voice Coil Actuator
Send us an Inquiry now to find out more Information and the latest prices, thanks!
