How Are Alnico Magnets Made?

Alnico magnet was successfully developed in the 1930s. It is composed of aluminum, nickel, cobalt, iron, and other trace metal elements. Thanks to their high coercivity and high Curie temperature, Alnico magnets are widely used in many industrial and consumer products, such as motors, electric guitar pickups, microphones, sensors, speakers, traveling wave tubes, and so on. But how are Alnico magnets made, do you know? In this article, let's take a deeper look at the process of producing Alnico magnets.

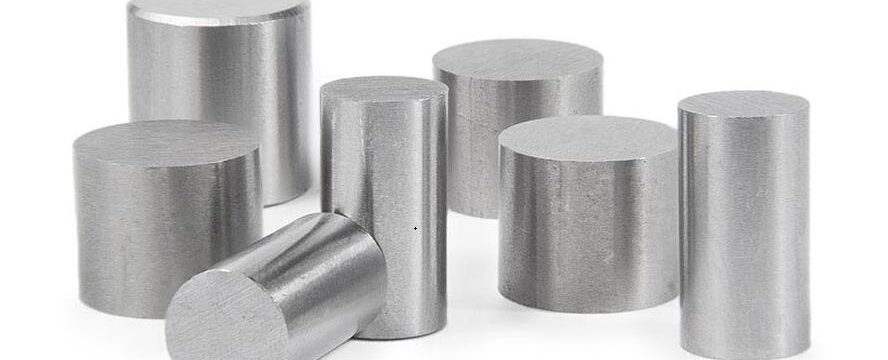

How Are Alnico Magnets Made?

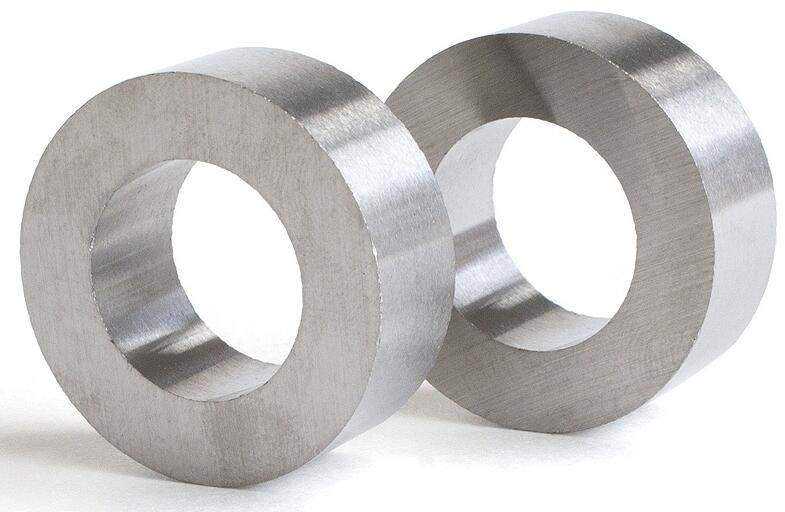

Before diving into our article, let's figure out how many types of Alnico magnets are out there.

Alnico magnets can be produced by two methods, one by sintering and the other, more generally, by using a casting process. The density and mass of the Alnico magnets made by casting are larger so they have better magnetic characteristics and performance compared with the ones produced by sintering. But sintered Alnico magnets are more economical to produce. Besides, both anisotropic and isotropic variations of Alnico magnets can be achieved by sintering or casting.

When larger Alnico magnets weighing tens of kilograms are needed, then they will nearly always be made by casting method. However, really small Alnico magnets that weigh grams rather than kilograms are usually produced by using the sintering process. Sintering is usually the process used when a high volume of magnets is required.

Without further ado, let's take a look at the steps of producing these two types of magnets.

The Steps of Producing Cast Alnico Magnets

Step one - Foundry Furnace

Different grades of Alnico have different recipes in terms of the percentage of aluminum, nickel, cobalt, and iron used. Quantities of the individual elements are placed in an induction furnace and are melted at a temperature of above 1750 degrees Celsius. There is more aluminum added than required to form the final magnet because some of the aluminum is wasted as it melts at a lower temperature (usually around 680 degrees Celsius). During the melting and before casting, samples are taken, cooled, and analyzed with an X-ray spectrometer to make sure that the exact ratios of materials are correct and to allow any last-minute adjustments to be made. Step Two - Casting Pour the molten material into a shell mold or a larger green sand mold. As the molten metal cools, the shell mold starts to burn, and when the magnet becomes cold, the shell almost disintegrates. A shell mold is made by using a pattern plate and a molding machine. The size of the patterns is similar to the required magnet size but with an additional allowance for shrinkage and machining size. The internal magnetic cavities are connected by runners and these runners allow molten metal to reach each magnet cavity. Once the magnet is cast, these runners will be scrapped and remelted. Step Three - Fettling After that, the newly cast magnets are harvested from the molds and are then fettled on grinding wheels to remove the runner gates. Step Four - Heat Treatment The magnets are then heated to a very high temperature and placed in a magnetizer so that they can begin to cool down in a very strong magnetic field. This process is called hardening the magnet. Then place the magnets in large tempering ovens for several days to temper and stabilize the magnets. The heat treatment stage of the process, together with the foundry mix of alloys, makes the magnetic material have temperature handling characteristics and final magnetic properties. Step Five - Grinding Magnets usually need to be ground to a tight tolerance. Because the magnets are very hard, this is done by grinding. Step Six - Testing You can use a hysteresis graph tester, a Gauss meter, or a flux meter to test Alnico magnets. Step Seven - Coating/Painting If a specific coating is needed, this is done at the end of the process. The poles of the magnets may be fettled in order to make them bright and shiny. Step Eight - Magnetising The magnets are inserted into a coil or solenoid magnetizer, and within one-fifth of a second, an electrical pulse will generate the necessary magnetic field to fully magnetize the magnets.

The Steps of Producing Sintered Alnico Magnets

Step One - Pressing The raw elements must be finely ground by milling into fine particles before sintered Alnico magnets are produced. The powdered magnetic material is then pressed into a die under a pressure of several tonnes, which closely resembles the magnets' desired shape.

Step Two - Sintering After the powder has been pressed, the material is sintered at a temperature above 1200°C in a furnace in a hydrogen atmosphere. This process fuses all the compressed particles to form a magnet.

Step Three - Cooling Then the red hot material is cooled. At this point, the material will have anisotropic properties and a preferred magnetic direction if it is cooled in the presence of an external magnetic field, which makes it stronger. Otherwise, if no external magnetic field is applied, the resulting magnet will be isotropic without a preferential direction of magnetism.

Step Four - Coating Typically, sintered Alnico magnets do not need further shaping or machining because the dies they are pressed into is very close to the required magnet shape. If a specific coating is needed, this can be done at the end of the process, just before the final magnetization of the magnets. To make the poles of the magnets bright and shiny, they can be fettled.

Step Five - Magnetising At last, the raw magnetic material is placed in a coil or solenoid magnetizer for magnetization and then within one-fifth of a second, an electrical pulse generates the necessary field required to fully magnetize the magnet.

Conclusion
