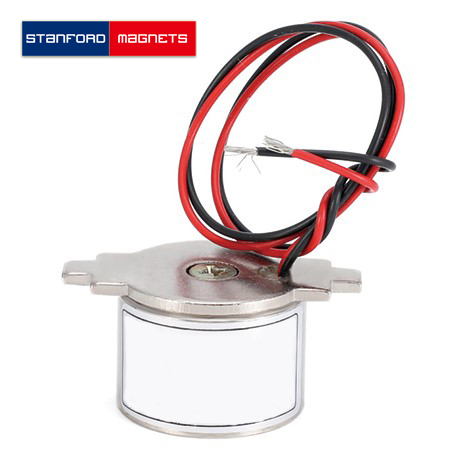

SMON3161 Permanent Electromagnet XDA-28/21D

Model: XDA-28/21D

Insulation class: B (130℃)

Insulation withstand voltage: AC600V 50/60Hz 1min

Power: 7.2W

Suction power: 18kg

INQUIRY Can't Find The Size

Follow Us On


Description

Permanent Electromagnet Introduction

Permanent Electromagnet has a permanent magnetic field. When supplied with power, the magnetic field is turned off or neutralized. The current is used to neutralize the magnetic field and holding force created by the powerful neodymium magnet. This type of electromagnet is used when the magnetic field is necessary to work most of the time (>50%), and off in a while.

Permanent Electromagnet Specification

Grade XDA-28/21D
Voltage 12V 24V
current 0.6A 0.3A
power 7.2W
suction 18kg

Permanent Electromagnet

Permanent Electromagnet Applications

Permanent Electromagnet is used when the magnetic field is necessary to work most of the time (>50%), and off in a while.

Related products:

Permanent Electromagnet XDA-15/15D,

Permanent Electromagnet XDA-20/23D,

Permanent Electromagnet XDA-25/29D.
