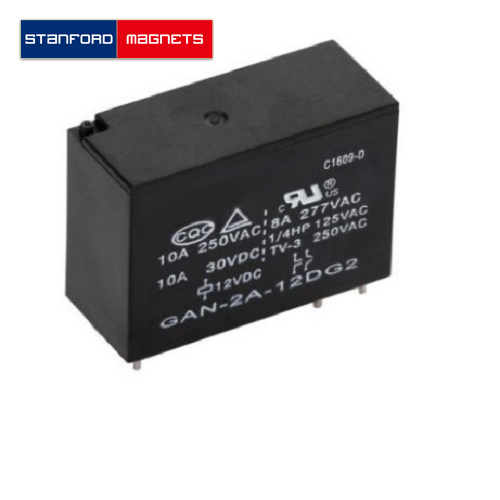

SMON3038 Power Relay GAN-2A-12DG2

Product ID: SMON3038

{{el.prop}}: {{el.options}}

DESCRIPTION
TECHNICAL

Power Relay GAN-2A-12DG2 Introduction

Power Relay GAN-2A-12DG2 has three subsystems: contact system, magnetic system, and mechanical components. The magnetic system includes the coil, the core, the yoke, the armature, and the return spring. Power relays open or close a circuit by using an electromagnetic coil for seamless power flow. These cost-efficient relays are manufactured with an armature, spring, and one or several contacts. If the relay is meant to be normally open when power is applied the electromagnet attracts the armature.

Power Relay GAN-2A-12DG2 Specification

Insulation Resistance 1000MΩ (500VDC)
Operating time (at rated voltage) ≤20ms
Release time (at rated voltage) ≤15ms
Vibration resistance 10Hz~55Hz 1.5mm
Humidity 5~85% Rh
Temperature range -40 to 105 ℃
Terminal PCB
Weight 17g


Power Relay GAN-2A-12DG2 Applications

Power Relay GAN-2A-12DG2 is mainly used for more than 3A load switches and is equipped with household appliances, such as refrigerators, and washing machines, as well as various industrial equipment. Related products: Power Relay GB-1C-12L Power Relay GB-1C-12L2 Power Relay GD-1A-12D
Download a PDF Specification Sheet
