DESCRIPTION

Rectangular Voice Coil Actuator Introduction

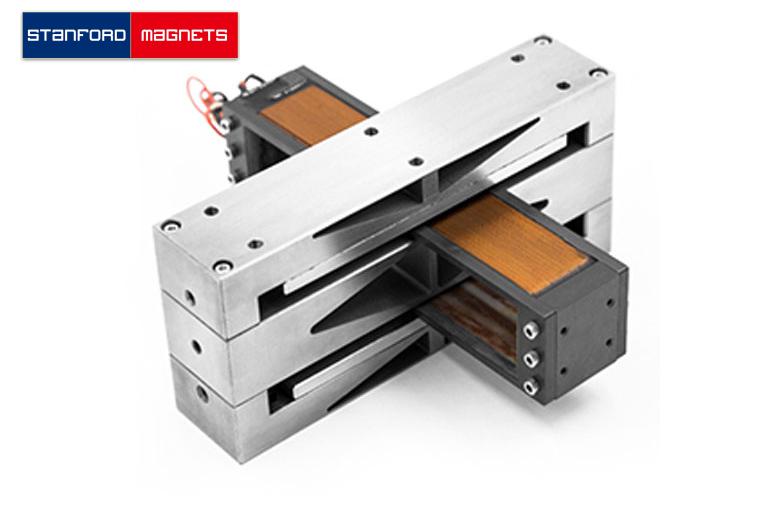

Rectangular Voice Coil Actuator is a type of linear actuator that operates on the same basic principles as a Flat Voice Coil Actuator but has a distinct rectangular coil configuration.

When an electric current flows through the rectangular voice coil, it interacts with the surrounding magnetic field, generating a Lorentz force perpendicular to both the magnetic field and the current direction. It allows for very fine adjustments and smooth, controlled motion. It also features fast response time and is capable of rapid movements due to the direct relationship between the current and the magnetic field.

Rectangular Voice Coil Actuator Specification

-	Unit	Value
Rated performance
Peak Force	N	6.0
Continuous Force	N	3.2
Force Constant	N/Arms	4.5
Back EMF	Vrms/(m/s)	4.5
Stroke	mm	10.0
Coil Gap	mm	0.5
Electrical specifications
Peak Voltage	V	13.3
Peak Current	A	1.3
Motor Constant	N/√W	1.5
Electrical Time Constant	ms	0.2
Peak Power	W	17.7
Phase Resistance	Ω	10.0
Phase Inductance	mh	2.0
Maximum Winding Temperature	℃	155
Mechanical characteristics
Mover Weight	g	18
Stator Weight	g	70
Total Weight	g	88
Dimensions	mm	342735

Rectangular Voice Coil Actuator Applications

Automotive Systems: In active suspension systems where precise control of damping forces improves ride quality.
Industrial Automation: For precise positioning of tools or parts in manufacturing processes.
Robotics: In actuators for robotic arms or precision movement systems.
