SMBN0419 Neodymium BLOCK Magnet - Stanford Magnets

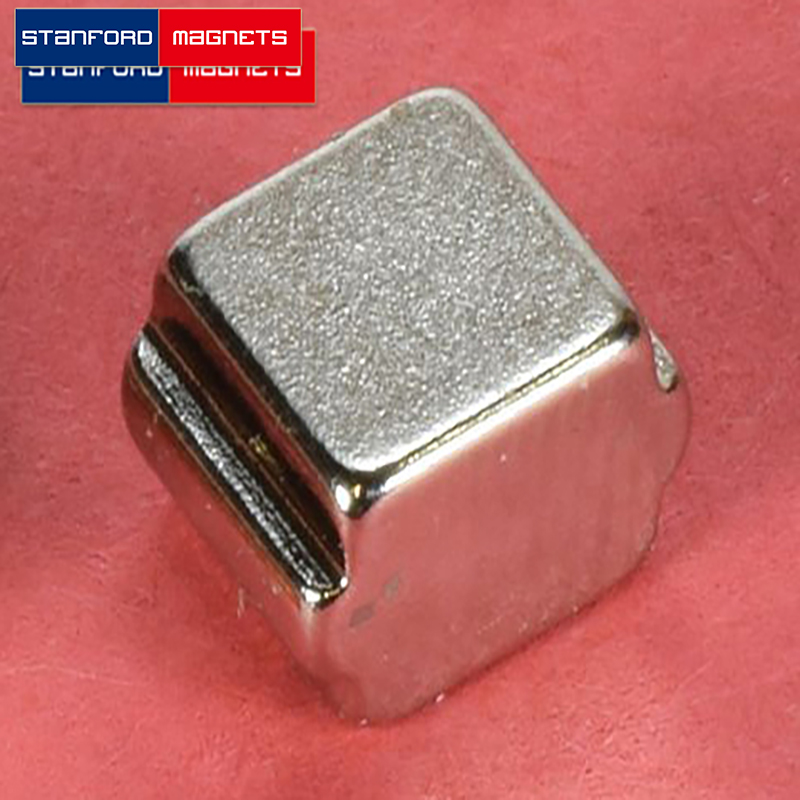

SMBN0419 Neodymium BLOCK Magnet

The SMBN0419 BLOCK neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 3/8″ length × 3/8″ width × 1/4″ thick , with step OUT, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0104375 lbs. It can pull up to 9.2 lbs steel. And the surface field is up to 4838 gauss.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMBN0419
Material: NdFeB
Shape: Block
Dimension: 3/8” length x 3/8” width x 1/4” thick , with step OUT
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.17
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 9.2
Surface Field(Gauss): 4838
Magnetization direction: Through Thickness
Magnetic Face: 3/8″ length x 3/8″ width
Max Operating Temp(C/F): 80/176
