SMBN0445 Neodymium Block Magnet | Stanford Magnets

SMBN0445 Neodymium Block Magnet

Product ID: SMBN0445
Material: NdFeB
Shape: Block
Dimension: 1/2” x 1/2” x 1/8” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.14
Grade: N52
Coating: Gold Coated Magnets
Pull Force(Lbs): 9.09
Surface Field(Gauss): 3032
Magnetization Direction: Through Thickness
Magnetic Face: 1/2″ x 1/2″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

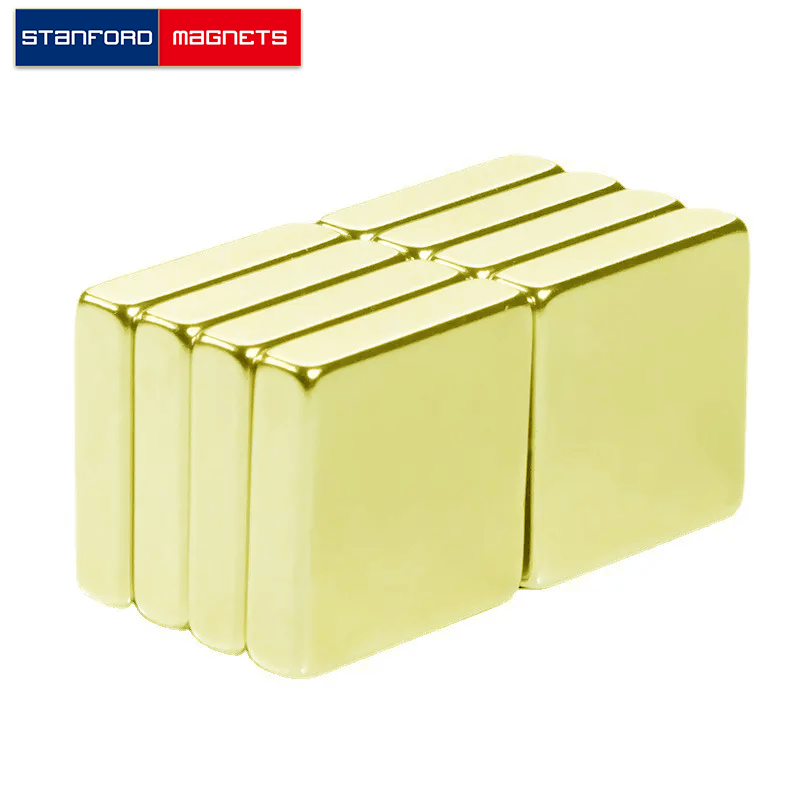

The SMBN0445 block neodymium magnet is made from high-performance N52 NdFeB, with Gold coating. The dimension of this item is 1/2″ × 1/2″ × 1/8″ thick, magnetized Through Thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0085 lbs. It can pull up to 9.09 lbs steel. And the surface field is up to 3032 gausses.
