SMBN0486 Neodymium Countersunk Magnet | Stanford Magnets

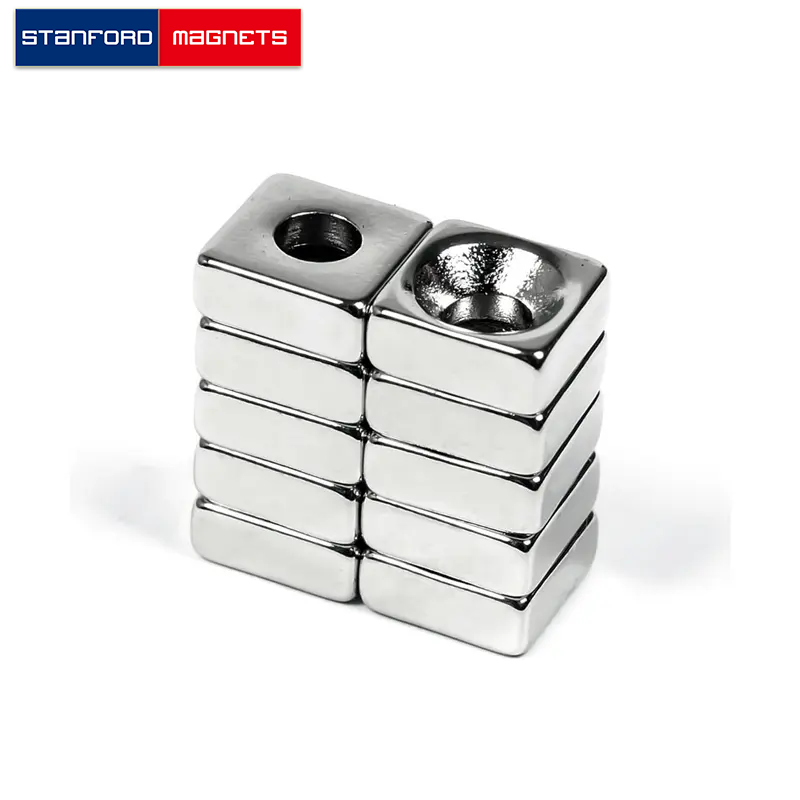

SMBN0486 Neodymium Countersunk Magnet

Product ID: SMBN0486
Material: NdFeB
Shape: counersunk on both sides

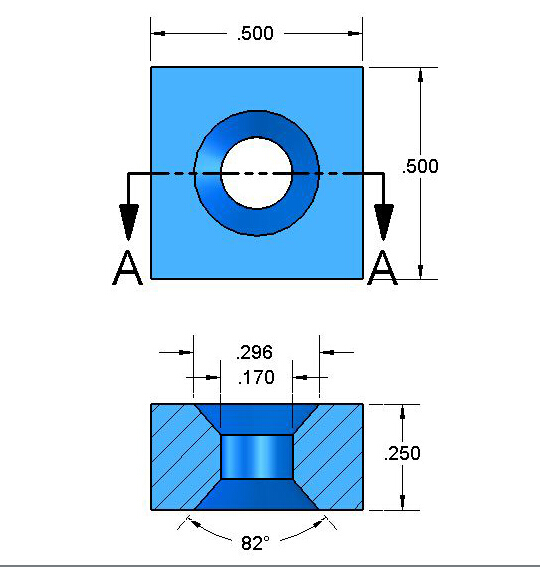

Dimensions: 1/2″ x 1/2″ x 1/4″ thick w/ hole to accept a #6 screw
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.233 oz. (6.61 g)
Pull Force, Case 1: 9.53 lbs
Pull Force, Case 2: 15.54 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

magnets

INQUIRY Can't Find The Size

Follow Us On


Description

SMBN0486 Neodymium Countersunk Magnet is one of the smaller items in our unique line of countersunk magnets. This tough little block is countersunk on both sides, making it reversible. The double countersunk hole allows for fastening to surfaces where magnets just won’t stick! Great for woodworking, art projects, manufacturing and many other custom applications.
