SMBN0543 Neodymium BLOCK Magnet | Stanford Magnets

SMBN0543 Neodymium BLOCK Magnet

Product ID: SMBN0543
Material: NdFeB
Shape: Block
Dimension: 1” x 1” x 3/4” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 3.25
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 63.58
Surface Field(Gauss): 5286
Magnetization Direction: Through Thickness
Magnetic Face: 1″ x 1″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

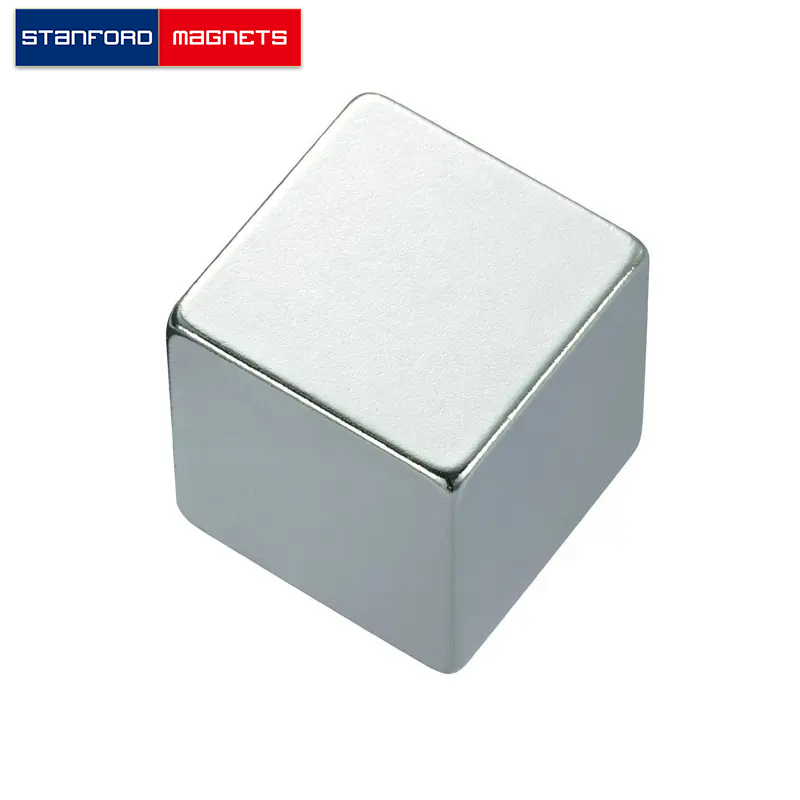

The SMBN0543 block neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 1″ × 1″ × 3/4″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.203125 lbs. It can pull up to 63.58 lbs steel. And the surface field is up to 5286 gausses.
