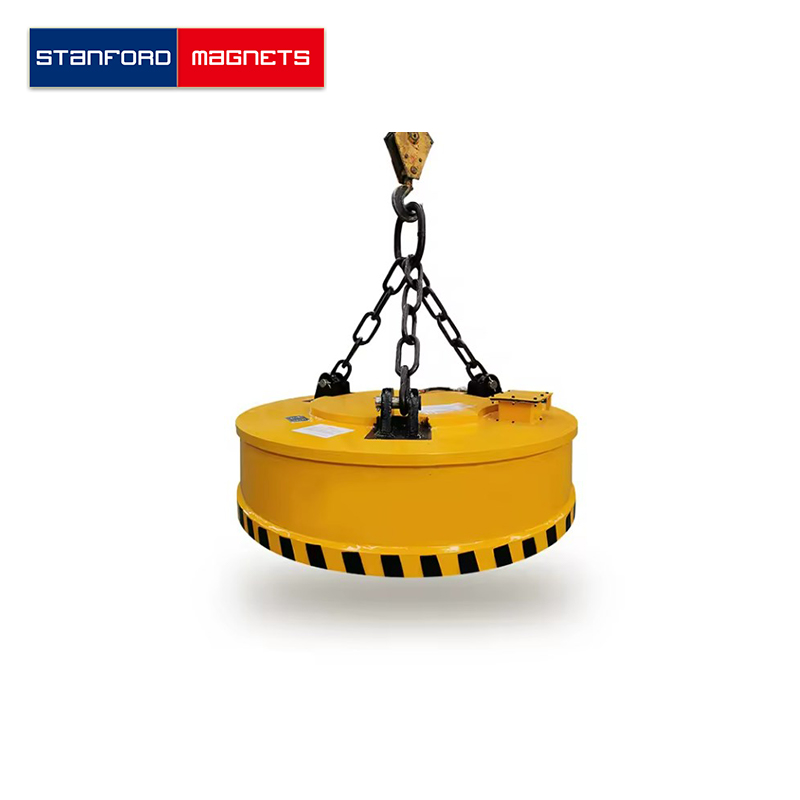

The coil is made of copper wire, and the coil protection plate is made of rolled high manganese steel plate with good wear resistance and strong impact resistance. It features lightweight, low energy consumption, heavy lifting capacity, and long service life.
The insulation treatment adopts vacuum drying and vacuum filling to improve the electrical and mechanical properties of the coil. The heat resistance grade of the insulating material can reach the special grade C.
If the strong excitation control method is used, the lifting capacity can be further improved.
| Electric current (A) | Cold-state power (KW) | Lifting Capacity (cold/hot state) | Mass (kg) | ||
| Steel ball | Steel ingot | Steel scrap | |||
| 15 | 3.3 | 2500 | 380/200 | 120/100 | 490 |
| 18 | 3.96 | 3000 | 480/250 | 150/130 | 620 |
| 26.6 | 5.9 | 4500 | 650/400 | 250/200 | 800 |
| 35 | 7.7 | 6500 | 1000/800 | 450/400 | 1350 |
| 45.5 | 10 | 7500 | 1300/1000 | 600/500 | 1700 |
| 54 | 12 | 8500 | 1400/1100 | 700/600 | 2010 |
| 71.2 | 15.6 | 11000 | 1900/1500 | 1100/900 | 2830 |
| 75 | 16.5 | 12500 | 2300/1800 | 1300/1100 | 3200 |
| 102 | 22.5 | 14500 | 2750/2100 | 1600/1350 | 4230 |
| 129 | 28.4 | 21000 | 3500/2800 | 2200/1850 | 7000 |
| 154 | 33.9 | 28000 | 4800/3800 | 2850/2250 | 9000 |
Special magnetic circuit design with large air gap magnetic density.
Reasonable insulation structure.
The constant voltage control method is usually used.
Simple structure, safe and reliable, suitable for all kinds of lifting equipment.
Suitable for all kinds of lifting equipment. Related products: A Series Permanent Magnetic Lifter, B Series Permanent Magnetic Lifter, C Series Permanent Magnetic Lifter, D Series Permanent Magnetic Lifter
