SMMM-B-32 Metric Mounting Magnets

Dimensions:
D=32mm (1.26″)
d1=5.5mm (0.22″) (Sized for M5 screw)
d2=10mm (0.39″) (Straight counterbored hole)
h=8mm (0.32″)
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 1.33 oz. (37.7 g)
Pull Force: 50.7 lbs
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

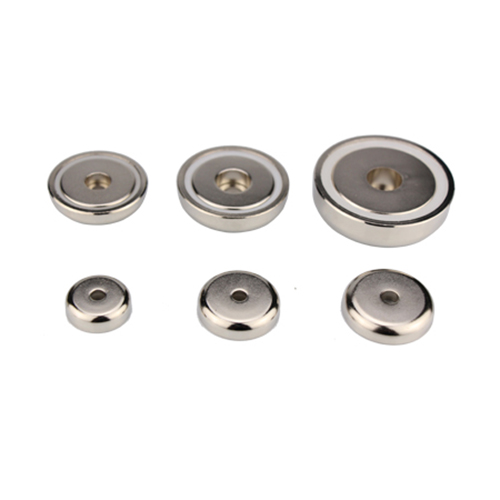

The SMMM-B-32 is a flat mounting magnet with a straight hole through the magnet to recess a screw or bolt head. These mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.
