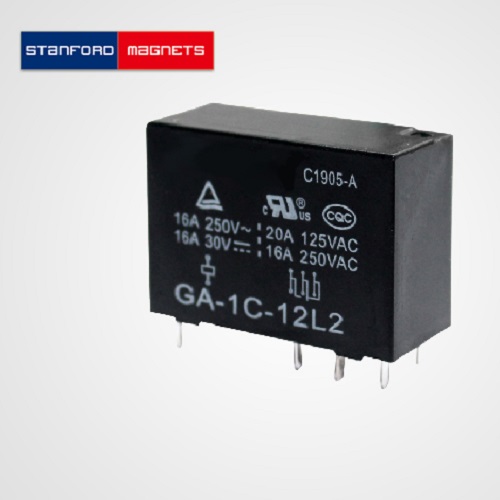

SMON3037 Power Relay GA-1C-12L2

Model: GA-1C-12L2

Certification: UL, VDE, CQC

Dimension: 29×12.6×20.6 mm

Rated Operating Power: 0.54w or 0.72w

Contact load current: 5A/250VAC, 10A/250VAC

Environment temperature: -40 to 85℃

INQUIRY Can't Find The Size

Follow Us On


Description

Power Relay GA-1C-12L2 Introduction

Power Relay GA-1C-12L2 has three subsystems: contact system, magnetic system, and mechanical components. The magnetic system includes the coil, the core, the yoke, the armature, and the return spring.

Power relays open or close a circuit by using an electromagnetic coil for seamless power flow. These cost-efficient relays are manufactured with an armature, spring, and one or several contacts. If the relay is meant to be normally open when power is applied the electromagnet attracts the armature.



Power Relay GA-1C-12L2 Specification

Insulation Resistance 1000MΩ (500VDC)
Operating time (at rated voltage) ≤20ms
Release time (at rated voltage) ≤8ms
Vibration resistance 10Hz~55Hz 1.5mm
Humidity 5~85% Rh
Temperature range -40 to 85 ℃
Terminal PCB
Weight 14g





Power Relay GA-1C-12L2 Applications

Power Relay GA-1C-12L2 is mainly used for more than 3A load switches and is equipped with household appliances, such as refrigerators, and washing machines, as well as various industrial equipment.
