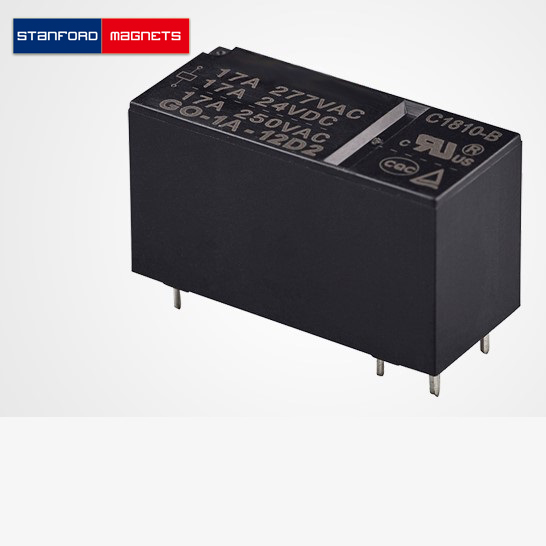

SMON3054 Power Relay GO-1A-12D2

Product ID: SMON3054

{{el.prop}}: {{el.options}}

DESCRIPTION
TECHNICAL

Power Relay GO-1A-12D2 Introduction

Power Relay GO-1A-12D2 has three subsystems: contact system, magnetic system, and mechanical components. The magnetic system includes the coil, the core, the yoke, the armature, and the return spring. Power relays open or close a circuit by using an electromagnetic coil for seamless power flow. These cost-efficient relays are manufactured with an armature, spring, and one or several contacts. If the relay is meant to be normally open when power is applied the electromagnet attracts the armature.

Power Relay GO-1A-12D2 Features

  • 17A high switching capability.
  • Withstand voltage up to 5000 volts.
  • A variety of contact forms are available.

Power Relay GO-1A-12D2 Specification

Insulation Resistance 1000MΩ (500VDC)
Operating time (at rated voltage) ≤15ms
Release time (at rated voltage) ≤10ms
Vibration resistance 10Hz~55Hz 1.5mm
Humidity 5~85% Rh
Temperature range -40 to 105℃
Terminal PCB
Weight 10-13.5g

Power Relay GO-1A-12D2 Applications

Power Relay GO-1A-12D2 is used for more than 3A load switches and is equipped with household appliances, such as refrigerators, and washing machines, as well as various industrial equipment. Related products: Power Relay GB-1C-12L Power Relay GB-1C-12L2 Power Relay GD-1A-12D
Download a PDF Specification Sheet
