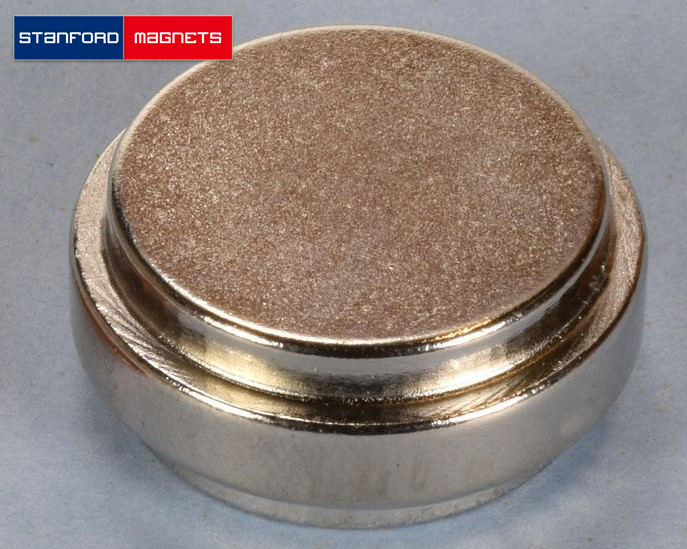

SMON3072 Stepped Disc Neodymium Magnets

Product ID SMON3072
Material NdFeB, Grade N42
Shape Stepped Disc
Dimensions 3/4” dia. x 3/8” thick
Tolerances ±0.004″ x ±0.004″
Weight 0.787 oz. (22.3 g)
Pull Force, Case 1 28.34 lbs
Pull Force, Case 2 42.87 lbs
Plating/Coating Ni-Cu-Ni
Magnetization Direction Axial
Max. Operating Temp 80℃
Brmax 13,200 Gauss
BHmax 42 MGOe
INQUIRY Can't Find The Size

Follow Us On


Stepped Disc Neodymium Magnets Introduction

Stepped Disc Neodymium Magnets combine great holding power with an outset area around the circumference. They are also widely used in 3D glasses holder, the art display industry, mining, engineering, lighting, etc.


Stepped Disc Neodymium Magnets Applications

Stepped Disc Neodymium Magnets are specifically designed for applications where a groove is needed, like eyeglasses or molding small parts.

Dimension: 3/4” dia. x 3/8” thick

PDF Specification Sheet Download:

Download a PDF Specification Sheet of Custom Stepped Magnets
