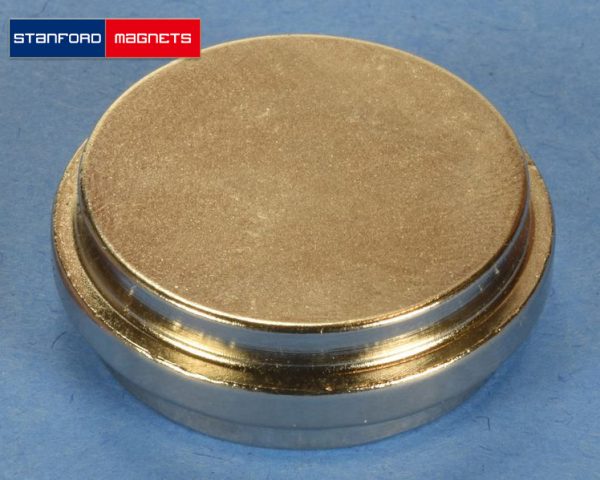

SMON3074 Stepped Disc Neodymium Magnets

Product ID SMON3074
Material NdFeB, Grade N42
Shape Stepped Disc
Dimensions 1” dia. x 3/8” thick with step OUT
Tolerances ±0.004″ x ±0.004″
Weight 1.41 oz. (40.0 g)
Pull Force, Case 1 40.98 lbs
Pull Force, Case 2 65.09 lbs
Plating/Coating Ni-Cu-Ni
Magnetization Direction Axial
Max. Operating Temp 80℃
Brmax 13,200 Gauss
BHmax 42 MGOe
INQUIRY Can't Find The Size

Follow Us On


Description

Stepped Disc Neodymium Magnets Introduction

Stepped Disc Neodymium Magnets combine great holding power with an outset area around the circumference. This feature enables the use of many methods of securing the magnet in your assembly. This magnet is suitable for those trying to avoid the use of adhesives.



Stepped Disc Neodymium Magnets Applications

Stepped Disc Neodymium Magnets are suitable for those trying to avoid the use of adhesives.

PDF Specification Sheet Download:

Download a PDF Specification Sheet of Custom Stepped Magnets
