Description

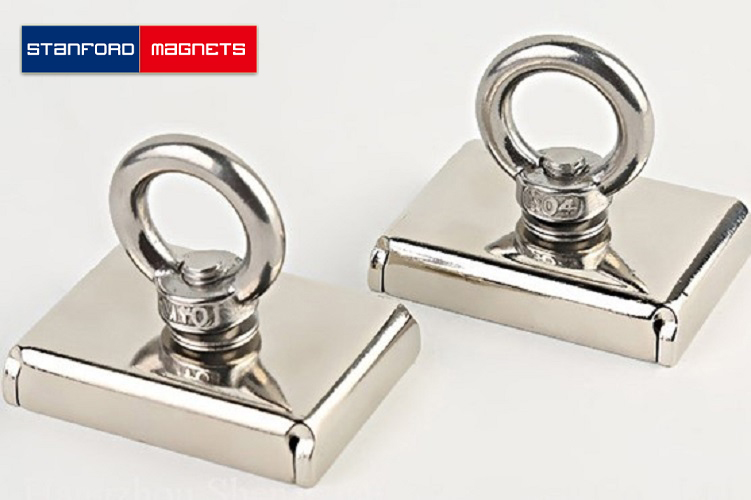

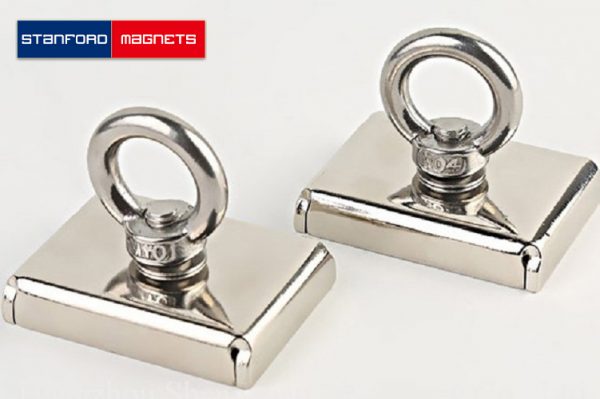

Square Neodymium Pot Magnets with Hanging Rings Introduction
Square Neodymium Pot Magnets with Hanging Rings are made of super strong neodymium magnets encased in a chrome-plated steel cup. The neodymium magnet is bonded inside of the cup with adhesives. This design forms a magnetic circuit that triples the holding force up to 112 Lbs. At the same time, the steel cup also protects the magnet from being damaged when it’s frequently used.

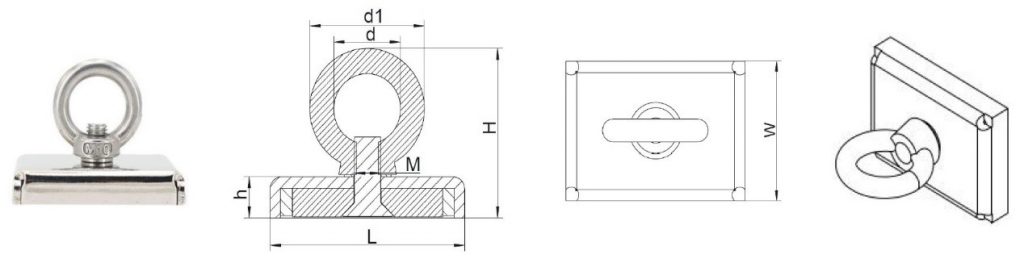

Square Neodymium Pot Magnets with Hanging Rings Specification
| L (mm) | W (mm) | h (mm) | H (mm) | d (mm) | d1 (mm) | M (mm) | Attraction |
| 75 | 55 | 15 | 59.5 | 24.5 | 41 | M10 | 160kgs/350lbs |
Square Neodymium Pot Magnets with Hanging Rings Applications
- Magnetic holdings, lifting, car signs, antenna Mounting, positioning, retrieving, and much more.
- Related products:Holding Power Pot Magnet w/ Female Threaded Stud Neodymium Cup Magnet 23 Lbs
Holding Power Pot Magnet w/ Female Threaded Stud Neodymium Cup Magnet 16 Lbs
Holding Power Pot Magnet w/ Female Threaded Stud Neodymium Cup Magnet 39 Lbs
