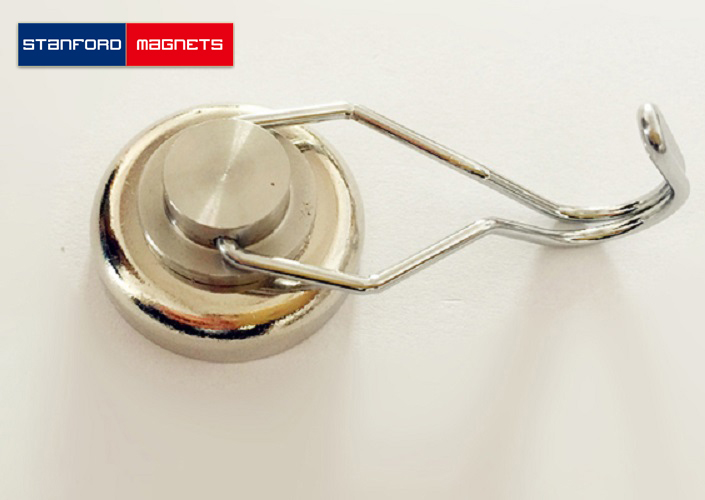

Neodymium Magnetic Swivel Hooks have a neodymium magnet to attract on the flat surface and the swivel hook to hang the object. The standard version is the shells plated with nickel.

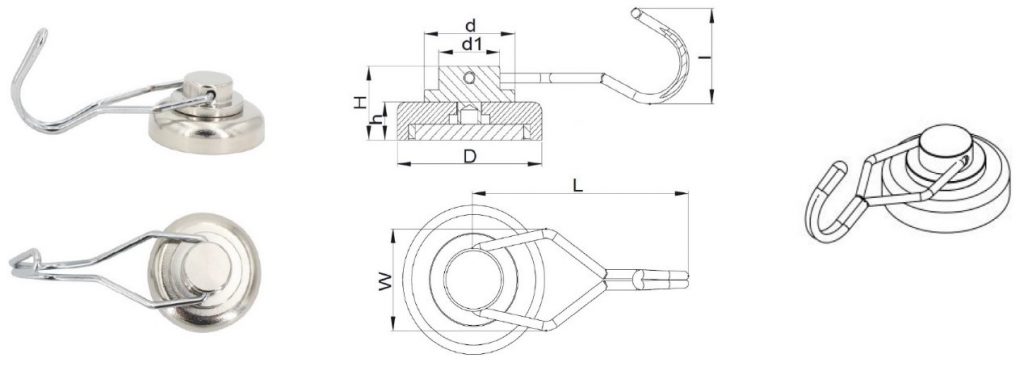

| D | d | d1 | h | H | L | W | I | Vertical Attraction | Side Attraction | Weight |
| (mm) | (Kgs) | (Kgs) | (gs) | |||||||
| 25 | 20 | 13.5 | 8 | 15.5 | 53.5 | 23 | 24 | 17 | 3.5 | 38 |
| 32 | 20 | 13.5 | 8 | 15.5 | 53.5 | 23 | 24 | 30 | 5.5 | 52 |
| 36 | 20 | 13.5 | 8 | 15.5 | 53.5 | 23 | 24 | 40 | 6.5 | 65 |
| 42 | 20 | 13.5 | 8.6 | 16.1 | 53.5 | 23 | 24 | 60 | 8 | 92 |
Used as Industrial magnets Related products: Name Badge Magnets Neodymium Magnetic Climbing Hooks Rubber Covered Neodymium Magnetic Hooks
