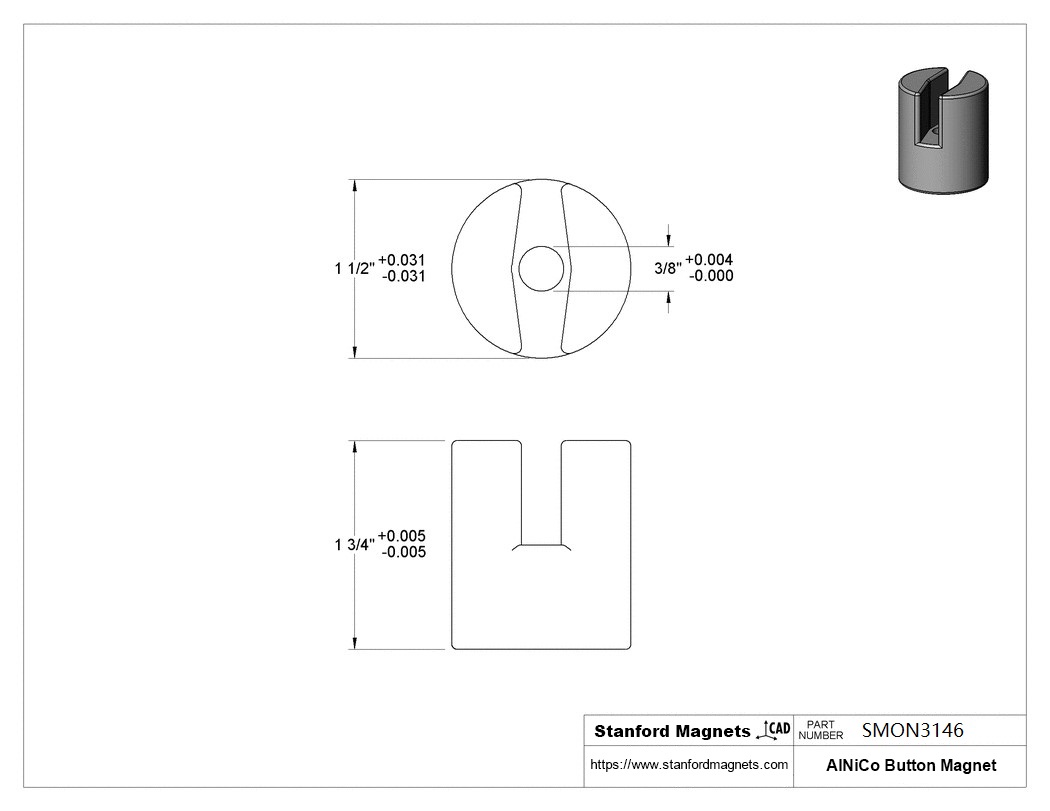

SMON3146 AlNiCo Button Magnets Thickness: 1 3/4″

Product ID SMON3146
Material AlNiCo
Magnet Grade AlNiCo 5
Shape Button
Mount Type Unthreaded Hole
Thickness 1 3/4″
OD 1 1/2″
Hole Diameter 3/8″
Maximum Temperature 970℉
Maximum Pull 35 lbs.
INQUIRY Can't Find The Size

Follow Us On

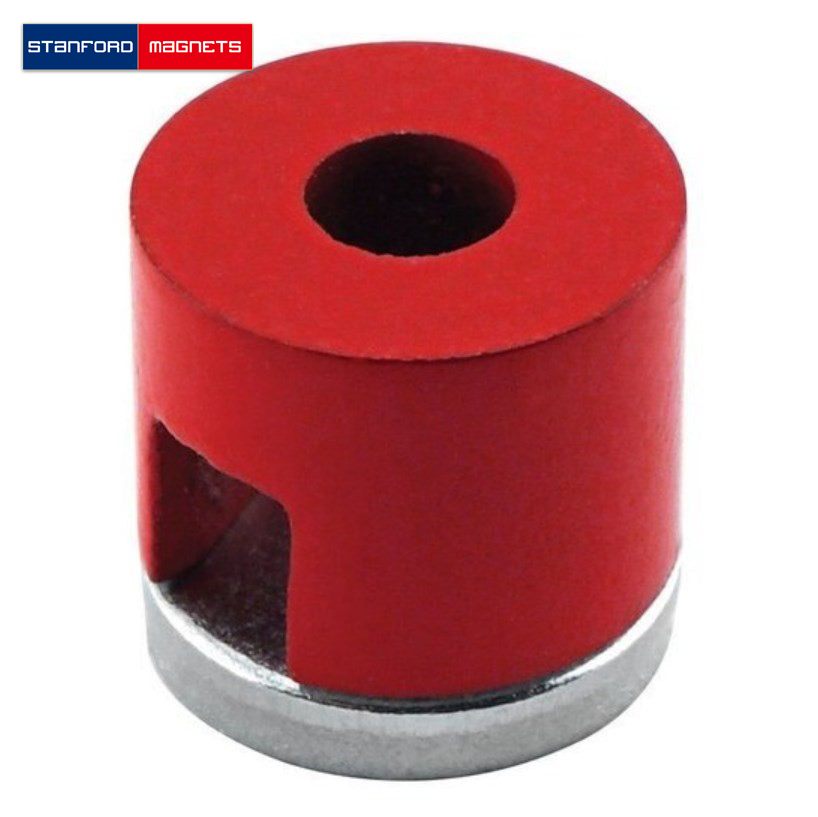

AlNiCo Button Magnets Introduction

AlNiCo Button Magnets are not as strong as rare earth magnets, but they can withstand the highest temperatures. Magnets come with a keeper that covers the poles to maintain the strength of the magnet and protect it from attracting metal during storage.

The AlNiCo button magnet is a two-pole rounded magnet usually with a hole in the center and a slot separating the two poles. They are generally small in size.

AlNiCo Button Magnets Applications

AlNiCo Button Magnets are Ideal for clamping, holding and switching applications.
