SMON3147 AlNiCo Bridge Magnet

Product ID SMON3147
Material AlNiCo
Magnet Grade AlNiCo 5
Shape Bridge
Mount Type Unthreaded Hole
Maximum Temperature 970℉
RoHS RoHS 3
INQUIRY Can't Find The Size

Follow Us On


Description

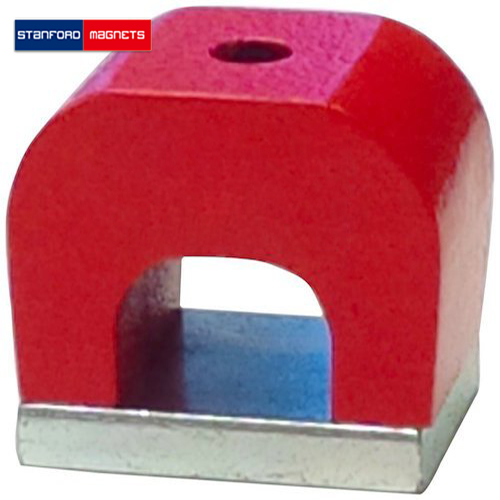

AlNiCo Bridge Magnet Introduction

AlNiCo Bridge Magnets are not as strong as rare earth magnets, but they can withstand the highest temperatures. AlNiCo Bridge Magnets offer good corrosion resistance and can be used in welding workshops and as mounting aids for precision accessories.

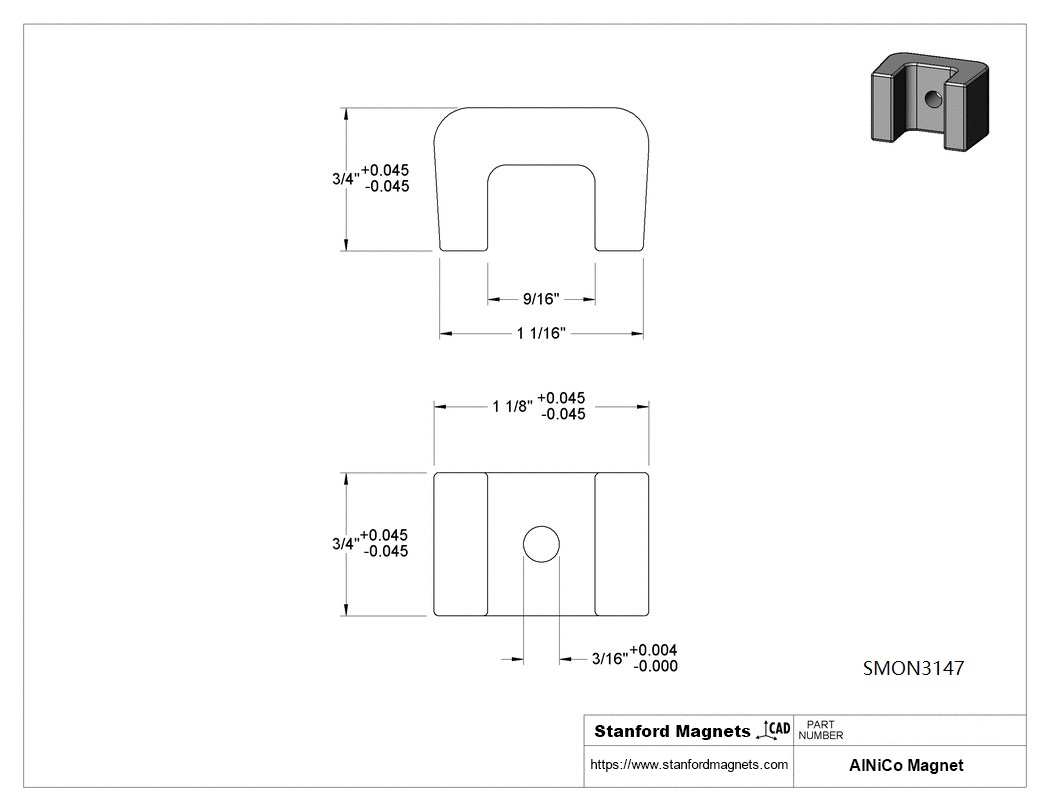

AlNiCo Bridge Magnet Specification

Thick. Hole
Dia.
Wd. Opening Wd. Wd. At Poles Lg. Max. Pull, lbs.
3/4″ 3/16″ 1 1/8″ 9/16″ 1 1/16″ 3/4″ 13
25/32″ 0.197″ 1.181″ 0.59″ 1 3/16″ 25/32″ 9
63/64″ 0.197″ 1.575″ 0.787″ 1 37/64″ 63/64″ 19
1″ 3/16″ 1 1/2″ 3/4″ 1 3/8″ 1″ 22
1 1/8″ 3/16″ 1 3/4″ 7/8″ 1 1/2″ 1 1/8″ 30
1.181″ 0.197″ 1.771″ 29/32″ 1 49/64″ 1.181″ 25
1 7/8″ 1/4″ 2 1/2″ 1 3/8″ 2 1/2″ 1 13/16″ 70



AlNiCo Bridge Magnet Applications

AlNiCo Bridge Magnet are used where a strong permanent magnet is required, such as electric motors, electric guitar pickups, microphones, sensors, loudspeakers, and cow magnets.

AlNiCo Bridge Magnet

Please contact us for detailed information.
