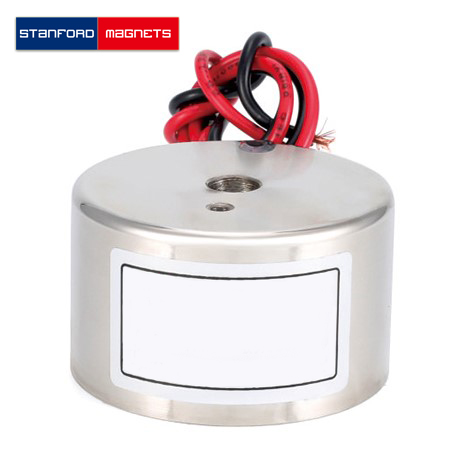

SMON3166 Permanent Electromagnet XDA-50/30D | Stanford Magnets

SMON3166 Permanent Electromagnet XDA-50/30D

Model: XDA-50/30D

Insulation class: B (130℃)

Insulation withstand voltage: AC600V 50/60Hz 1min

Power: 15W

Suction power: 50kg

INQUIRY Can't Find The Size

Follow Us On


Description

Permanent Electromagnet Introduction

Permanent Electromagnet has a permanent magnetic field. When supplied with power, the magnetic field is turned off or neutralized. The current is used to neutralize the magnetic field and holding force created by the powerful neodymium magnet. This type of electromagnet is used when the magnetic field is necessary to work most of the time (>50%), and off in a while.

Permanent Electromagnet Specification

Grade XDA-50/30D
Voltage 12V 24V
current 1.36A 0.68A
power 15W
suction 50kg

Permanent Electromagnet XDA-50/30D

Permanent Electromagnet Applications

Permanent Electromagnet is used when the magnetic field is necessary to work most of the time (>50%), and off in a while.
