Normal Magnetic Grate Introduction
Normal Magnetic Grate is a type of magnetic separator used in industrial applications to remove ferrous contaminants from bulk materials. It consists of a grid or a series of magnetic tubes (also known as magnetic bars) arranged in a grate-like fashion. The standard magnetic stand is composed of a metal frame and 25mm diameter magnetic rods arranged at a center distance of 50mm, and then assembled or welded with screws. These magnetic bars are typically made of high-strength rare earth magnets, such as neodymium, which provide a strong magnetic field.
The purpose of
Normal Magnetic Grate is to attract and capture ferrous materials, like iron and steel particles, from the product stream as it passes through the grate. This is important in industries where product purity and the prevention of equipment damage are crucial, such as in the food processing, plastics, pharmaceutical, and mining industries.
Normal Magnetic Grate Specification

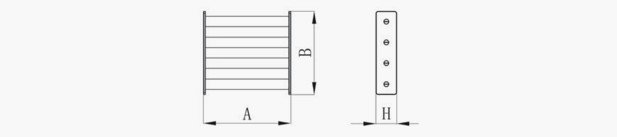

- Square
Model |
Dimensions (mm) |
Bars |
Weight (Kg) |
A |
B |
H |
SWMG10/10S |
100 |
100 |
40 |
2 |
1 |
SWMG15/15S |
150 |
150 |
40 |
3 |
2.2 |
SWMG20/20S |
200 |
200 |
40 |
4 |
3.7 |
SWMG25/25S |
250 |
250 |
40 |
5 |
5.5 |
SWMG30/30S |
300 |
300 |
40 |
6 |
8 |
SWMG35/35S |
350 |
350 |
40 |
7 |
10 |
SWMG40/40S |
400 |
400 |
40 |
8 |
13.5 |
SWMG45/45S |
450 |
450 |
40 |
9 |
17 |
SWMG50/50S |
500 |
500 |
40 |
10 |
20.5 |

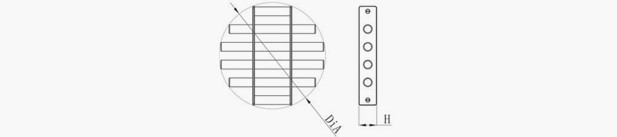

- Round
Model |
Dia |
H |
Bars |
Weight (Kg) |
SWMG-R100 |
100 |
40 |
2 |
0.9 |
SWMG-R150 |
150 |
40 |
3 |
1.5 |
SWMG-R200 |
200 |
40 |
4 |
2.5 |
SWMG-R250 |
250 |
40 |
5 |
3.7 |
SWMG-R300 |
300 |
40 |
6 |
5.5 |
SWMG-R350 |
350 |
40 |
7 |
7.5 |
SWMG-R400 |
400 |
40 |
8 |
10 |
SWMG-R450 |
450 |
40 |
9 |
12.3 |
SWMG-R500 |
500 |
40 |
10 |
15.5 |
Please contact us for more specifications.
Normal Magnetic Grate Applications
Normal Magnetic Grate is placed in stockers, drawer boxes, hoppers, etc., to capture and remove iron filings, iron flakes, and other metal substances.
