SMON3185 Easy-cleaning Magnetic Grate

Product ID: SMON3185

{{el.prop}}: {{el.options}}

DESCRIPTION
TECHNICAL

Easy-cleaning Magnetic Grate Introduction

Easy-cleaning Magnetic Grate is a type of magnetic separator used in industrial applications to remove ferrous contaminants from bulk materials. It consists of a grid or a series of magnetic tubes (also known as magnetic bars) arranged in a grate-like fashion. The standard magnetic stand is composed of a metal frame and 25mm diameter magnetic rods arranged at a center distance of 50mm, and then assembled or welded with screws. These magnetic bars are typically made of high-strength rare earth magnets, such as neodymium, which provide a strong magnetic field. The purpose of Easy-cleaning Magnetic Grate is to attract and capture ferrous materials, like iron and steel particles, from the product stream as it passes through the grate. This is important in industries where product purity and the prevention of equipment damage are crucial, such as in the food processing, plastics, pharmaceutical, and mining industries.

Easy-cleaning Magnetic Grate Specification

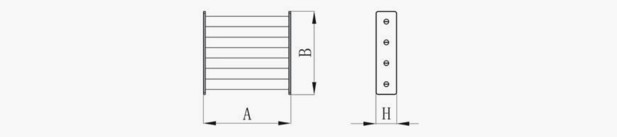

  1. Square
square
Model Dimensions (mm) Bars Weight (Kg)
A B H
SWMG10/10S 100 100 40 2 1
SWMG15/15S 150 150 40 3 2.2
SWMG20/20S 200 200 40 4 3.7
SWMG25/25S 250 250 40 5 5.5
SWMG30/30S 300 300 40 6 8
SWMG35/35S 350 350 40 7 10
SWMG40/40S 400 400 40 8 13.5
SWMG45/45S 450 450 40 9 17
SWMG50/50S 500 500 40 10 20.5
*Other Shapes or specifications are available. Please contact us for more specifications.

Easy-cleaning Magnetic Grate Applications

Easy-cleaning Magnetic Grate is placed in stockers, drawer boxes, hoppers, etc., to capture and remove iron filings, iron flakes, and other metal substances. Related products: Square Magnetic Separator Grid Rotary Magnetic Separators Round Magnetic Separator Grid
