Plate Housing Magnet Introduction
Plate Housing Magnet can be easily installed on a closed production line or processing equipment to remove iron blocks, iron filings, etc. from materials that are prone to clumping and clogging. The magnetic plate is installed on the box in the form of a hinge and can be disassembled and cleaned. The wedge-shaped partition at the entrance can prevent materials from being blocked by bridges or even breaking the accumulated materials, and guide them to the strong magnetic plates on both sides, which helps to fully separate iron impurities. If a rare earth permanent magnet is used, it can firmly absorb ferromagnetic objects of almost all sizes. Import, export, or other special requirements can be customized according to customers.
Plate Housing Magnet Specification

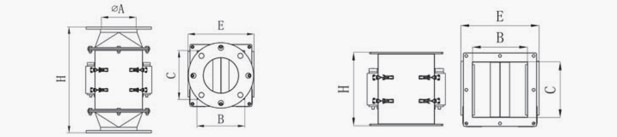

Figure 1-1 Plate Housing Magnet
| Model |
Dimensions (mm) |
Weight (Kg) |
| ΦA |
B |
C |
E |
H |
| MC150 |
150 |
208 |
208 |
322 |
470 |
27 |
| MC200 |
200 |
208 |
258 |
322 |
470 |
34 |
| MC250 |
250 |
258 |
358 |
372 |
500 |
62 |
| MC2020 |
- |
208 |
208 |
322 |
300 |
17 |
| MC2025 |
- |
208 |
258 |
322 |
300 |
21 |
| MC2525 |
- |
258 |
258 |
372 |
300 |
27 |
| MC2530 |
- |
258 |
308 |
372 |
300 |
32 |
| MC2535 |
- |
258 |
308 |
372 |
300 |
37 |
| MC2540 |
- |
208 |
408 |
372 |
300 |
42 |
| MC2545 |
- |
258 |
458 |
372 |
300 |
47 |
| MC2550 |
- |
208 |
508 |
372 |
300 |
53 |
| MC2555 |
- |
258 |
558 |
372 |
300 |
58 |
| MC2560 |
- |
258 |
608 |
372 |
300 |
63 |
Please Contact us for Custom Specifications.
Plate Housing Magnet Applications
Plate Housing Magnet is widely used in the food, pharmaceutical, tobacco, and chemistry industries.
