SMON3196 Electric Drum Magnetic Separator

Product ID: SMON3196

{{el.prop}}: {{el.options}}

DESCRIPTION

TECHNICAL

Electric Drum Magnetic Separator Introduction

Electric Drum Magnetic Separator can separate or sort ferromagnetic metals from large quantities of dry powdery or granular materials. It is an ideal choice for magnetic separation of materials with high flow rates and high ferromagnetic content.

Electric Drum Magnetic Separator Specification

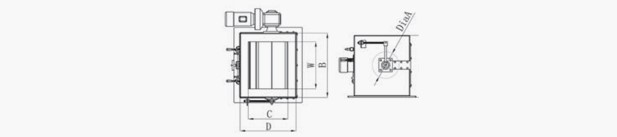

Figure 1-1 Electric Drum Magnetic Separator

Model	Dimension (mm)						Weight (Kg)	KW
Model	Dia A	B	D	W	C	H	Weight (Kg)	KW
MHD2130	215	420	450	280	290	500	105	0.25
MHD2135	215	470	450	330	290	500	115	0.25
MHD2140	215	520	450	380	290	500	125	0.25
MHD2145	215	570	450	430	290	500	135	0.25
MHD2150	215	620	450	480	290	500	145	0.25
MHD2160	215	720	450	580	290	500	175	0.25
MHD2170	215	820	450	680	290	500	195	0.25
MHD2180	215	920	450	780	290	500	215	0.25
MHD2190	215	1020	450	880	290	500	225	0.37
MHD2110	215	1120	450	980	290	500	245	0.37
MHD3130	315	420	550	280	360	650	218	0.25
MHD3135	315	470	550	330	360	650	235	0.25
MHD3140	315	520	550	380	360	650	252	0.25
MHD3145	315	570	550	430	360	650	269	0.25
MHD3150	315	620	550	480	360	650	286	0.25
MHD3160	315	720	550	580	360	650	320	0.25
MHD3170	315	820	550	680	360	650	354	0.37
MHD3180	315	920	550	780	360	650	388	0.37
MHD3190	315	1020	550	880	360	650	422	0.37
MHD3110	315	1120	550	980	360	650	456	0.55

Please Contact us for Custom Specifications.

Electric Drum Magnetic Separator Applications

Electric Drum Magnetic Separator is widely used in iron removal and separation and purification in waste recycling, food, wood industry, chemical industry, building materials, mountains, thermal power, steel, light industry, and other fields. Related products: Rotary Magnetic Separators Magnetic Plate, Flush Face Magnetic Plate, Spout Magnet

Download a PDF Specification Sheet
