SMON3197 Magnetic Coolant Cleaner

Features: Continuous iron removal and automatic cleaning

Material: Stainless Steel 304 or 316L

Standard Operating Temperature: ≤80℃

Magnetic Field: 2000GS, 3000-4000GS

INQUIRY Can't Find The Size

Follow Us On


Description

Magnetic Coolant Cleaner Introduction

Magnetic Coolant Cleaner can remove iron or ferromagnetic particles from the coolant to extend the service life of grinding wheels and other machining tool equipment. The rotating magnetic drum uses high-strength magnets to continuously remove iron particles. It improves product surface quality and saves costs by reusing coolant in the field of machining has been widely used.

Magnetic Coolant Cleaner Specification

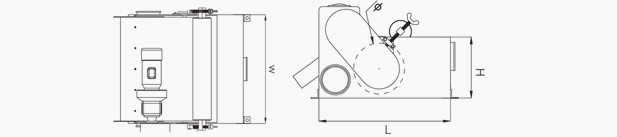

Figure 1-1 Magnetic Coolant Cleaner

 Magnetic Coolant Cleaner

Model Dimensions (mm) Drum diameter (Φ) Rotation speed (r/min) Inlet and outlet (inch) Weight (Kg)
Flow (L/min) L W H
MCS25 25 450 150 205 150 2.5 1.5 41
MCS50 50 450 200 205 150 2.5 2 55
MCS75 75 450 250 205 150 2.5 2 63
MCS100 100 450 300 205 150 2.5 2.5 75
MCS150 150 500 350 255 180 2.5 3 121
MCS200 200 500 450 255 180 2.5 3 155
MCS300 300 650 450 305 200 2.5 3 241
MCS400 400 650 550 305 200 2.5 4 294
MCS500 500 650 650 305 200 2.5 5 347



Please Contact us for Custom Specifications.

Magnetic Coolant Cleaner Applications

Magnetic Coolant Cleaner is widely used in the field of mechanical processing.
