SMON3198 Half Magnetic Drum

Features: Semicircular static magnetic field

Material: Stainless Steel 304 or 316L

Standard Operating Temperature: ≤80℃

Magnetic Field: Customized

INQUIRY Can't Find The Size

Follow Us On


Description

Half Magnetic Drum Introduction

Half Magnetic Drum is composed of a 180° semi-circular static magnetic field, with a rotatable stainless steel sleeve and a rotating shaft on the outside. If equipped with a drive motor, it forms a system that can automatically separate. It is mainly used to remove or sort iron filings, iron sheets, iron blocks, or other ferromagnetic materials from large quantities of dry materials such as iron ore, grain, sand, gravel, plastics, wood, broken glass, waste, etc.

Half Magnetic Drum Specification

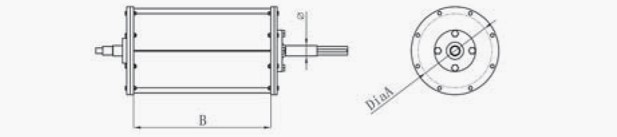

Figure 1-1 Half Magnetic Drum

 Half Magnetic Drum

Model Dimensions (mm) Weight (Kg)
Dia A B Φ
MDM2130 215 300 25 29
MDM2135 215 350 25 34
MDM2140 215 400 25 39
MDM2145 215 450 25 44
MDM2150 215 500 25 49
MDM2160 215 600 25 59
MDM2170 215 700 25 69
MDM2180 215 800 25 79
MDM2190 215 900 25 89
MDM2110 215 1000 25 99
MDM3130 315 300 25 62
MDM3135 315 350 25 72
MDM3140 315 400 25 82
MDM3145 315 450 25 92
MDM3150 315 500 25 102
MDM3160 315 600 25 122
MDM3170 315 700 25 142



Please Contact us for Custom Specifications.



Half Magnetic Drum Applications

Half Magnetic Drum is widely used in the field of mechanical processing.
