SMRS0002 SmCo Cylinder Magnet | Stanford Magnets

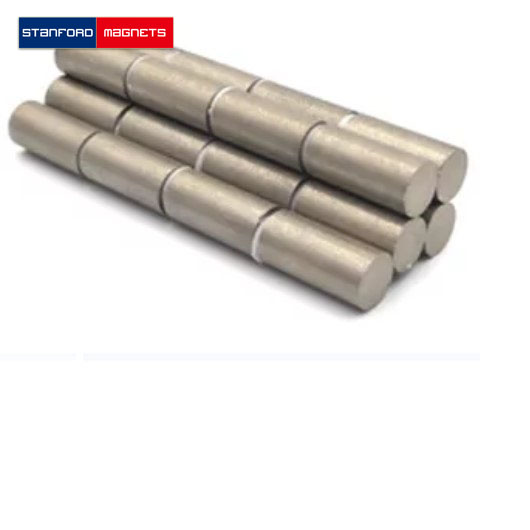

SMRS0002 SmCo Cylinder Magnet

Product ID: SMRS0002
Material: Sm2Co17
Shape: Cylinder
Dimension: 5mm dia x 10mm thickness
Grade: 26M
Coating: Magnets Requiring no Protective Coating
Pull Force(Lbs): 1.1
Surface Field(Gauss): 4000
Magnetization Direction: Through Thickness
Magnetic Face: 5mm dia
Max Operating Temp(C/F): 300/572

INQUIRY Can't Find The Size

Follow Us On


Description

The SMRS0002 SmCo Cylinder Magnet is made from high-performance 26M Sm2Co17, without other protective coatings.

Applications: Computer disc drives, sensors, traveling wave tubes, linear actuators, satellite systems, and motors where temporary stability is vital.

Typical Magnetic Properties:

grade list

Processing Service: Casting, Milling, Mixing, Orientating&Pressing, Isostatic Pressing, Sintering, Magnetic Properties Inspection, Machining, Surface Treatment(If needed), Appearance/Dimensional Inspection, Magnetizing, Magnetic Inspection, Packaging

Attributes:

1. High resistance to demagnetization
2. High energy (magnetic strength is strong for its size)
3. Good temperature stability
