SMON5991 Arc Segment Laminated Magnet

Arc Segment Laminated Magnet Introduction

Arc Segment Laminated Magnet is a specialized type of magnet designed for specific applications, particularly in electric motors and generators.

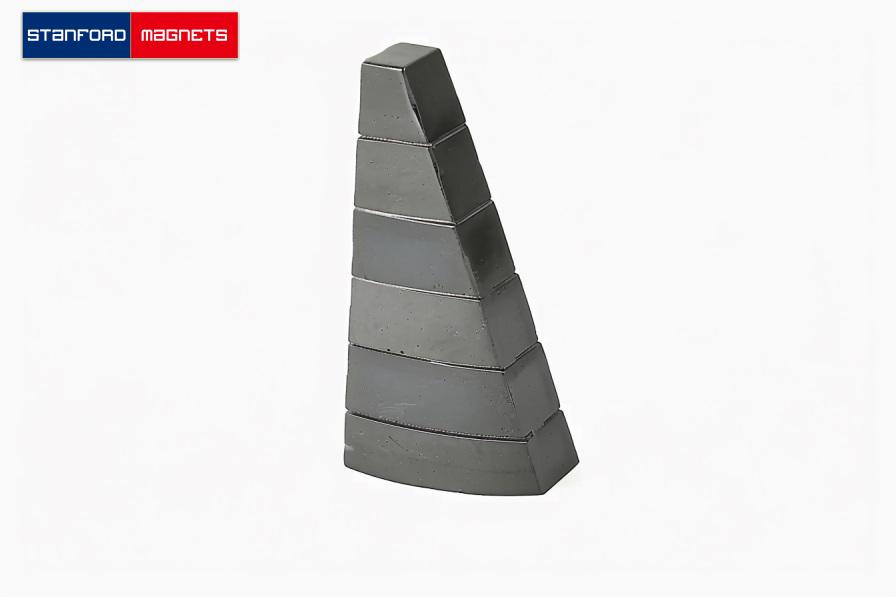

Arc Segment Laminated Magnet is made from rare-earth materials such as neodymium (NdFeB), which offer high magnetic strength. Laminated Magnet is to cut the whole magnet into many small magnets, and then use specific glue to bond together. These small magnets are insulated from each other and can cut down electromagnetic eddy current.

Arc Segment Laminated Magnet Specification

Arc Segment Laminated Magnet Applications

• Electric Motors: Commonly used in brushless DC motors, synchronous motors, and other types of electric motors where high efficiency and performance are required.
• Generators: Used in generators to enhance performance by reducing losses due to eddy currents.
• Magnetic Resonance Imaging (MRI): Employed in the construction of MRI machines where precise and powerful magnetic fields are necessary.
• Wind Turbines: Utilized in the generators of wind turbines to improve efficiency and reduce energy losses.

Laminated Magnet

Laminated magnets are specialized neodymium-based magnets designed to reduce eddy current losses in high-efficiency applications. These magnets are composed of multiple magnetized layers separated by insulating materials, which help minimize heat generation and enhance performance in high-frequency environments. Common types include Arc Segment Laminated Magnets, Laminated Magnets with Epoxy Coating, Fan Shape Laminated Magnets, and Block Laminated Magnets with Groove.

Function

Laminated magnets function by reducing eddy currents that typically occur in solid neodymium magnets when exposed to rapidly changing magnetic fields. This property enhances efficiency, particularly in high-speed motors, generators, and transformers.

Properties

Material: Neodymium (NdFeB) with insulating layers to minimize eddy currents.

Magnetic Performance: Maintains high magnetic strength while improving efficiency in dynamic applications.

Eddy Current Reduction: Laminated structure significantly decreases energy loss and heat buildup.

Coating Options: Common coatings include epoxy, nickel, or other insulating layers to prevent oxidation and enhance durability.

Customizable Shapes: Available in arc segments, fan shapes, blocks with grooves, and other tailored designs to fit specific applications.

Usage

Laminated magnets are widely used in:

High-Speed Electric Motors: Improving efficiency by minimizing eddy current losses.

Generators and Transformers: Enhancing performance in alternating magnetic fields.

Aerospace and Automotive: Used in electric vehicle (EV) motors, aircraft propulsion, and power systems.

Wind Turbines: Reducing energy dissipation for improved efficiency.

Medical and Industrial Equipment: Applied in high-precision instruments requiring stable magnetic performance.
