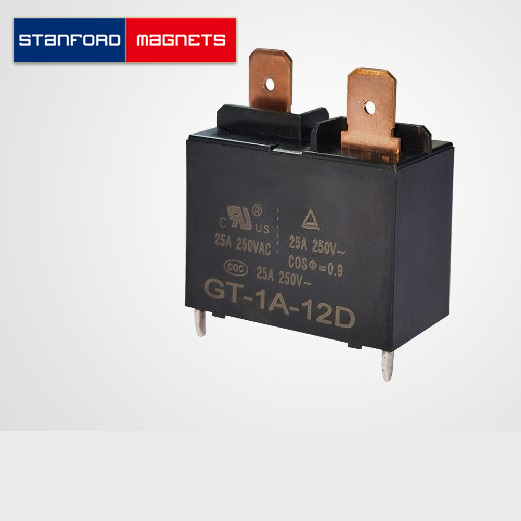

SMON3057 Power Relay GT-1A-12D

Product ID: SMON3057

{{el.prop}}: {{el.options}}

DESCRIPTION
TECHNICAL

Power Relay GT-1A-12D Introduction

Power Relay GT-1A-12D has three subsystems: contact system, magnetic system, and mechanical components. The magnetic system includes the coil, the core, the yoke, the armature, and the return spring. Power relays open or close a circuit by using an electromagnetic coil for seamless power flow. These cost-efficient relays are manufactured with an armature, spring, and one or several contacts. If the relay is meant to be normally open when power is applied the electromagnet attracts the armature.

Power Relay GT-1A-12D Features

  • 25A contact switching capability
  • Suitable for switching motor loads
  • Dust cover type package structure
  • Printed board and quick-connect pinouts
  • UL insulation class: Class F insulation class is available
  • Environmentally friendly products (RoHS compliant)


Power Relay GT-1A-12D Specification

Contact Load 25A 250VAC
Coil Voltage (3-48) VDC
Contact Resistance ≤100mΩ (1A 6VDC)
Temperature range -40 to 105℃
Terminal PCB

Power Relay GT-1A-12D Applications

Power Relay GT-1A-12D is used in audio amplification and telephone systems. It is also applied in automotive electronics and computer systems. Related products: Power Relay GA-1C-12L2 Power Relay GB-1C-12L Power Relay GB-1C-12L2
Download a PDF Specification Sheet
