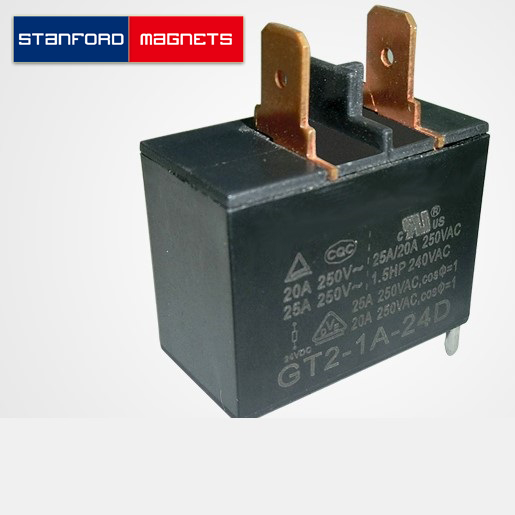

SMON3059 Power Relay GT2-1A-24D

Model: GT2-1A-24D

Certification: CQC, TUV, UL

Contact material: Silver alloy

Dimension: 30.1×15.7×23.3 mm

Environment temperature: -40 to 85℃

INQUIRY Can't Find The Size

Follow Us On


Description

Power Relay GT2-1A-24D Introduction

Power Relay GT2-1A-24D has three subsystems: contact, magnetic, and mechanical components. The magnetic system includes the coil, the core, the yoke, the armature, and the return spring.

Power relays open or close a circuit by using an electromagnetic coil for seamless power flow. These cost-efficient relays are manufactured with an armature, spring, and one or several contacts. If the relay is meant to be normally open when power is applied the electromagnet attracts the armature.



Power Relay GT2-1A-24D Features

  • Small and large capacity relay
  • Ideal for motor and compressor control
  • Quick-fit terminal, PCB terminal version also available

Power Relay GT2-1A-24D Specification

Contact Load 220A 250VAC
Coil Voltage (3-48) VDC
Contact Resistance ≤100mΩ (1A 6VDC)
Temperature range -40 to 85℃
Terminal PCB



Power Relay GT2-1A-24D Applications

Power Relay GT2-1A-24D is used in audio amplification and telephone systems. It is also applied in automotive electronics and computer systems.
