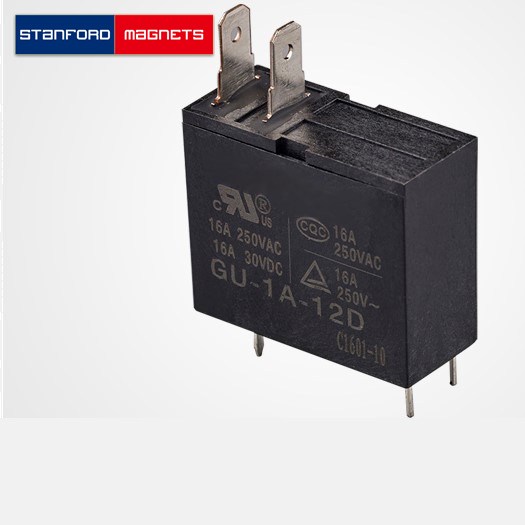

SMON3058 Power Relay GU-1A-12D

Product ID: SMON3058

{{el.prop}}: {{el.options}}

DESCRIPTION
TECHNICAL

Power Relay GU-1A-12D Introduction

Power Relay GU-1A-12D has three subsystems: contact system, magnetic system, and mechanical components. The magnetic system includes the coil, the core, the yoke, the armature, and the return spring. Power relays open or close a circuit by using an electromagnetic coil for seamless power flow. These cost-efficient relays are manufactured with an armature, spring, and one or several contacts. If the relay is meant to be normally open when power is applied the electromagnet attracts the armature.

Power Relay GU-1A-12D Features

  • 20A contact switching capability
  • Suitable for products such as microwave ovens
  • UL insulation class: Class F insulation class is available
  • Environmentally friendly products (RoHS compliant)

Power Relay GU-1A-12D Specification

Contact Load 16A 250VAC
Coil Voltage (3-48) VDC
Contact Resistance ≤100mΩ (1A 6VDC)
Temperature range -40 to 105℃
Terminal PCB


Power Relay GU-1A-12D Applications

Power Relay GU-1A-12D is used in audio amplification and telephone systems. It is also applied in automotive electronics and computer systems. Related products: Power Relay GA-1C-12L2 Power Relay GB-1C-12L Power Relay GB-1C-12L2
Download a PDF Specification Sheet
