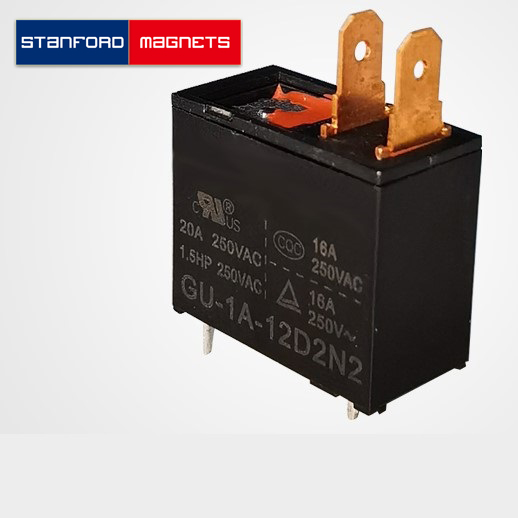

SMON3060 Power Relay GU-1A-12D2N2

Model: GU-1A-12D2N2

Certification: CQC, TUV, UL

Contact Material: Silver Alloy

Dimension: 24.3×12.34×20.35 mm

Environment temperature: -40 to 105℃

INQUIRY Can't Find The Size

Follow Us On


Power Relay GU-1A-12D2N2 Introduction

Power Relay GU-1A-12D2N2 has three subsystems: contact, magnetic, and mechanical components. The magnetic system includes the coil, the core, the yoke, the armature, and the return spring.

Power relays open or close a circuit by using an electromagnetic coil for seamless power flow. These cost-efficient relays are manufactured with an armature, spring, and one or several contacts. If the relay is meant to be normally open when power is applied the electromagnet attracts the armature.


Power Relay GU-1A-12D2N2 Features

  • Suitable for dense installation.
  • Withstand voltage 4000VAC.
  • Quick-loading foot structure.

Power Relay GU-1A-12D2N2 Specification

Contact Load 20A 250VAC
Coil Voltage (3-48) VDC
Contact Resistance ≤100mΩ (1A 6VDC)
Temperature range -40 to 105℃
Terminal PCB



Power Relay GU-1A-12D2N2 Applications

Power Relay GU-1A-12D2N2 is used in audio amplification and telephone systems. It is also applied in automotive electronics and computer systems.
