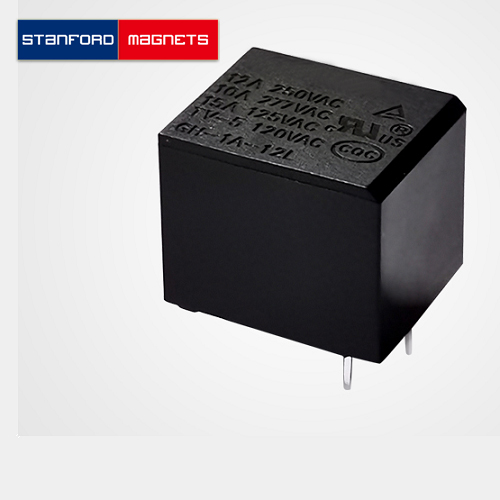

SMON3043 Power Relay GH-1A-12L

Product ID: SMON3043

{{el.prop}}: {{el.options}}


Power Relay GH-1A-12L Introduction

Power Relay GH-1A-12L has three subsystems: contact system, magnetic system, and mechanical components. The magnetic system includes the coil, the core, the yoke, the armature, and the return spring. Power relays open or close a circuit by using an electromagnetic coil for seamless power flow. These cost-efficient relays are manufactured with an armature, spring, and one or several contacts. If the relay is meant to be normally open when power is applied the electromagnet attracts the armature.

Power Relay GH-1A-12L Specification

Model GH-1A-12L
Contact Load 7A/10A 250VAC
Coil Voltage (3-48)VDC
Size 18.8x15.2x15.7mm
Contact Resistance ≤100mΩ (1A 6VDC)
Environment temperature -40 to 105℃

Power Relay GH-1A-12L Applications

Power Relay GH-1A-12L is used in audio amplification and telephone systems. It is also applied in automotive electronics and computer systems. Related products: Power Relay GA-1C-12L2 Power Relay GB-1C-12L Power Relay GB-1C-12L2
