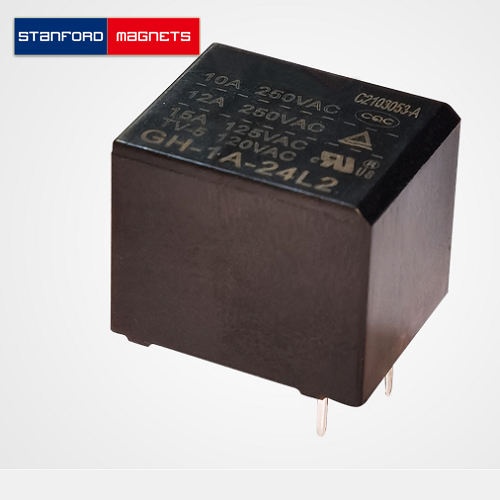

SMON3044 Power Relay GH-1A-24L2

Product ID: SMON3044

{{el.prop}}: {{el.options}}

DESCRIPTION
TECHNICAL

Power Relay GH-1A-24L2 Introduction

Power Relay GH-1A-24L2 has three subsystems: contact system, magnetic system, and mechanical components. The magnetic system includes the coil, the core, the yoke, the armature, and the return spring. Power relays open or close a circuit by using an electromagnetic coil for seamless power flow. These cost-efficient relays are manufactured with an armature, spring, and one or several contacts. If the relay is meant to be normally open when power is applied the electromagnet attracts the armature.

Power Relay GH-1A-24L2 Specification

Insulation Resistance 100MΩ (500VDC)
Operating time (at rated voltage) ≤10ms
Release time (at rated voltage) ≤5ms
Vibration resistance 10Hz~55Hz 1.5mm
Humidity 5~85% Rh
Temperature range -40 to 105℃
Terminal PCB
Weight 9.5g


Power Relay GH-1A-24L2 Applications

Power Relay GH-1A-24L2 is used in audio amplification and telephone systems. It is also applied in automotive electronics and computer systems. Related products: Power Relay GA-1C-12L2 Power Relay GB-1C-12L Power Relay GB-1C-12L2
