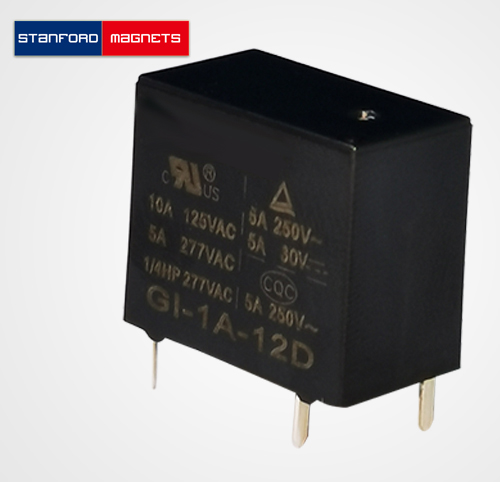

SMON3045 Power Relay GI-1A-12D

Model: GI-1A-12D

Certification: CQC, TUV, UL

Dimension: 18.5×10.2×15.9 mm

Environment temperature: -40 to 105℃

INQUIRY Can't Find The Size

Follow Us On


Description

Power Relay GI-1A-12D Introduction

Power Relay GI-1A-12D has three subsystems: contact system, magnetic system, and mechanical components. The magnetic system includes the coil, the core, the yoke, the armature, and the return spring.

Power relays open or close a circuit by using an electromagnetic coil for seamless power flow. These cost-efficient relays are manufactured with an armature, spring, and one or several contacts. If the relay is meant to be normally open when power is applied the electromagnet attracts the armature.

Power Relay GI-1A-12D Specification

Insulation Resistance 1000MΩ (500VDC)
Operating time (at rated voltage) ≤10ms
Release time (at rated voltage) ≤5ms
Vibration resistance 10Hz~55Hz 1.5mm
Humidity 5~85% Rh
Temperature range -40 to 105℃
Terminal PCB
Weight 5.6g



Power Relay GI-1A-12D Applications

Power Relay GI-1A-12D is used in audio amplification and telephone systems. It is also applied in automotive electronics and computer systems.
