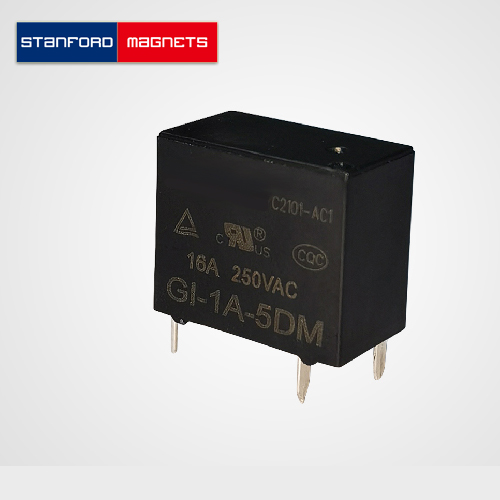

SMON3046 Power Relay GI-1A-5DM

Product ID: SMON3046

{{el.prop}}: {{el.options}}


Power Relay GI-1A-5DM Introduction

Power Relay GI-1A-5DM has three subsystems: contact system, magnetic system, and mechanical components. The magnetic system includes the coil, the core, the yoke, the armature, and the return spring. Power relays open or close a circuit by using an electromagnetic coil for seamless power flow. These cost-efficient relays are manufactured with an armature, spring, and one or several contacts. If the relay is meant to be normally open when power is applied the electromagnet attracts the armature.

Power Relay GI-1A-5DM Specification

Model GI-1A-5DM
Contact Load 3A/5A/10A/16A 250VAC 3A/5A/10A 30VDC
Coil Voltage (3-48)VDC
Size 18.8x15.2x15.7mm
Contact Resistance ≤100mΩ (1A 6VDC)
Environment temperature -40 to 105℃

Power Relay GI-1A-5DM Applications

Power Relay GI-1A-5DM is used in audio amplification and telephone systems. It is also applied in automotive electronics and computer systems. Related products: Power Relay GA-1C-12L2 Power Relay GB-1C-12L Power Relay GB-1C-12L2
Download a PDF Specification Sheet
