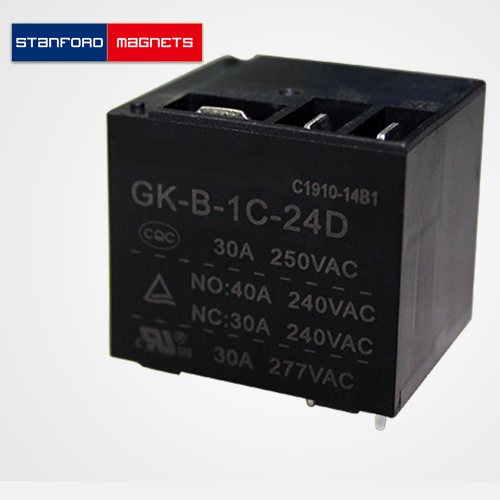

SMON3047 Power Relay GK-B-1C-24D

Model: GK-B-1C-24D

Contact Load: 30A/40A 250VAC; 40A 277VAC

Coil Voltage: (3-110)VDC

Size: 32×27.4×28.4 mm

Contact Resistance: ≤100mΩ (1A 6VDC)

Environment temperature: -40 to 85℃

INQUIRY Can't Find The Size

Follow Us On


Power Relay GK-B-1C-24D Introduction

Power Relay GK-B-1C-24D has three subsystems: contact system, magnetic system, and mechanical components. The magnetic system includes the coil, the core, the yoke, the armature, and the return spring.

Power relays open or close a circuit by using an electromagnetic coil for seamless power flow. These cost-efficient relays are manufactured with an armature, spring, and one or several contacts. If the relay is meant to be normally open when power is applied the electromagnet attracts the armature.


Power Relay GK-B-1C-24D Specification

Model GK-B-1C-24D
Contact Load 30A/40A 250VAC; 40A 277VAC
Coil Voltage (3-110)VDC
Size 32×27.4×28.4 mm
Contact Resistance ≤100mΩ (1A 6VDC)
Environment temperature -40 to 85℃


Power Relay GK-B-1C-24D Applications

Power Relay GK-B-1C-24D is used in audio amplification and telephone systems. It is also applied in automotive electronics and computer systems.
