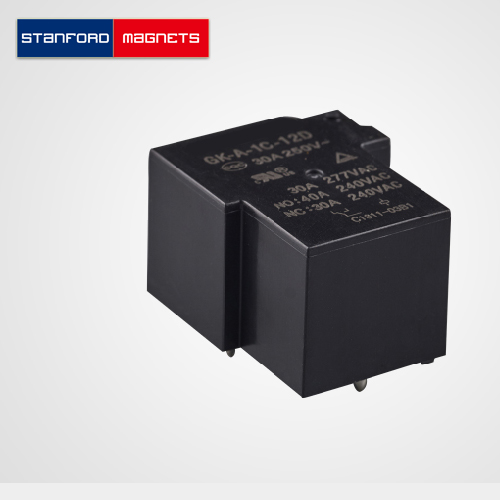

Power Relay GK-A-1C-12D Introduction
Power Relay GK-A-1C-12D has three subsystems: contact system, magnetic system, and mechanical components. The magnetic system includes the coil, the core, the yoke, the armature, and the return spring.
Power relays open or close a circuit by using an electromagnetic coil for seamless power flow. These cost-efficient relays are manufactured with an armature, spring, and one or several contacts. If the relay is meant to be normally open when power is applied the electromagnet attracts the armature.
Power Relay GK-A-1C-12D Specification
| Insulation Resistance |
1000MΩ (500VDC) |
| Operating time (at rated voltage) |
≤15ms |
| Release time (at rated voltage) |
≤10ms |
| Vibration resistance |
10Hz～55Hz 1.5mm |
| Humidity |
5~85% Rh |
| Temperature range |
-40 to 85℃ |
| Terminal |
PCB |
| Weight |
24g |
Power Relay GK-A-1C-12D Applications
Power Relay GK-A-1C-12D is used in audio amplification and telephone systems. It is also applied in automotive electronics and computer systems.
