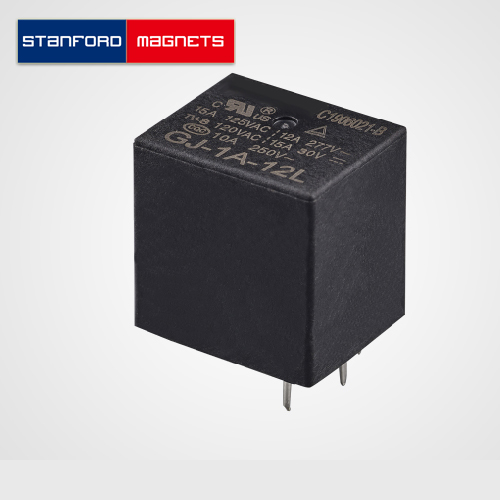

SMON3050 Power Relay GJ-1A-12L

Model: GJ-1A-12L

Certification: CQC, TUV, UL

Dimension: 20.3×16.6×20.2 mm

Environment temperature: -40 to 85℃

INQUIRY Can't Find The Size

Follow Us On


Power Relay GJ-1A-12L Introduction

Power Relay GJ-1A-12L has three subsystems: contact system, magnetic system, and mechanical components. The magnetic system includes the coil, the core, the yoke, the armature, and the return spring.

Power relays open or close a circuit by using an electromagnetic coil for seamless power flow. These cost-efficient relays are manufactured with an armature, spring, and one or several contacts. If the relay is meant to be normally open when power is applied the electromagnet attracts the armature.


Power Relay GJ-1A-12L Specification

Insulation Resistance 100MΩ (500VDC)
Operating time (at rated voltage) ≤15ms
Release time (at rated voltage) ≤5ms
Vibration resistance 10Hz~55Hz 1.5mm
Humidity 5~85% Rh
Temperature range -40 to 85℃
Terminal PCB
Weight 12g

Power Relay GJ-1A-12L Applications

Power Relay GJ-1A-12L is mainly used for more than 3A load switches and is equipped with household appliances, such as refrigerators, and washing machines, as well as various industrial equipment.
