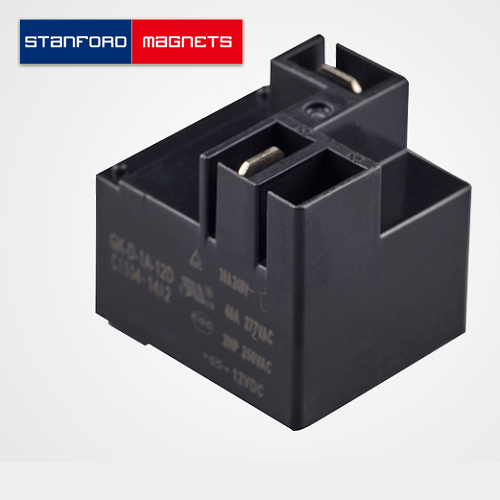

SMON3052 Power Relay GK-D-1C-12D

Model: GK-D-1C-12D

Certification: CQC, TUV, UL

Dimension: 32.4×27.3×27.8 mm

Environment temperature: -40 to 85℃

INQUIRY Can't Find The Size

Follow Us On


Power Relay GK-D-1C-12D Introduction

Power Relay GK-D-1C-12D has three subsystems: contact system, magnetic system, and mechanical components. The magnetic system includes the coil, the core, the yoke, the armature, and the return spring.

Power relays open or close a circuit by using an electromagnetic coil for seamless power flow. These cost-efficient relays are manufactured with an armature, spring, and one or several contacts. If the relay is meant to be normally open when power is applied the electromagnet attracts the armature.


Power Relay GK-D-1C-12D Specification

Insulation Resistance 1000MΩ (500VDC)
Operating time (at rated voltage) ≤15ms
Release time (at rated voltage) ≤10ms
Vibration resistance 10Hz~55Hz 1.5mm
Humidity 5~85% Rh
Temperature range -40 to 85℃
Terminal PCB
Weight 25g


Power Relay GK-D-1C-12D Applications

Power Relay GK-D-1C-12D is mainly used for more than 3A load switches and is equipped with household appliances, such as refrigerators, and washing machines, as well as various industrial equipment.
